Draw the qualitative and quantitative influence lines for the following structures: 5 6 3m 4 1 3 3m 3m 2 3m a) AE = 60,0

Post by answerhappygod »

Draw The Qualitative And Quantitative Influence Lines For The Following Structures 5 6 3m 4 1 3 3m 3m 2 3m A Ae 60 0 1
Draw The Qualitative And Quantitative Influence Lines For The Following Structures 5 6 3m 4 1 3 3m 3m 2 3m A Ae 60 0 1 (24.49 KiB) Viewed 56 times

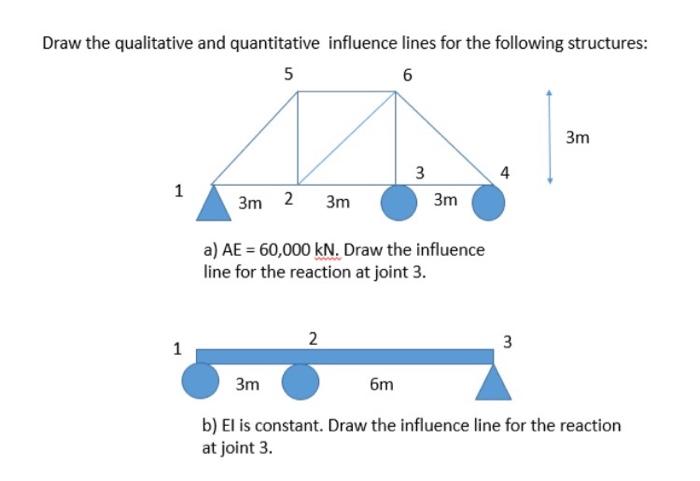

Draw the qualitative and quantitative influence lines for the following structures: 5 6 3m 4 1 3 3m 3m 2 3m a) AE = 60,000 kN. Draw the influence line for the reaction at joint 3. 2 1 3 3m бm b) El is constant. Draw the influence line for the reaction at joint 3.
