Problem 7: Given the following moment diagram and dimensions, draw the shear and loading diagrams. All slopes are first

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 7: Given the following moment diagram and dimensions, draw the shear and loading diagrams. All slopes are first

Post by answerhappygod »

Problem 7 Given The Following Moment Diagram And Dimensions Draw The Shear And Loading Diagrams All Slopes Are First 1
Problem 7 Given The Following Moment Diagram And Dimensions Draw The Shear And Loading Diagrams All Slopes Are First 1 (23.97 KiB) Viewed 85 times

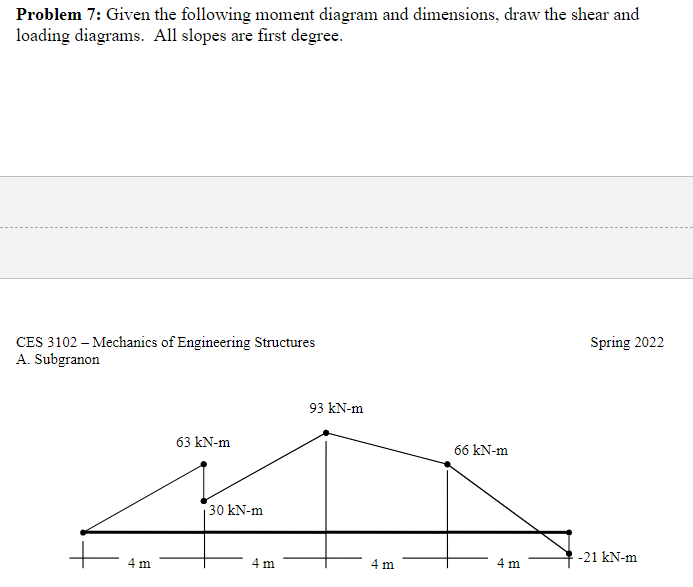

Problem 7: Given the following moment diagram and dimensions, draw the shear and loading diagrams. All slopes are first degree. CES 3102 - Mechanics of Engineering Structures A. Subgranon Spring 2022 93 kN-m 63 kN-m 66 kN-m 30 kN-m 4 m 4 m -21 kN-m 4 m 4 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
