Construct the combination logic gates for given function by using “Block Diagram/Schematic File” in Quartus II or Multis

[answerhappygod]

Construct The Combination Logic Gates For Given Function By Using Block Diagram Schematic File In Quartus Ii Or Multis 1 (36.55 KiB) Viewed 38 times

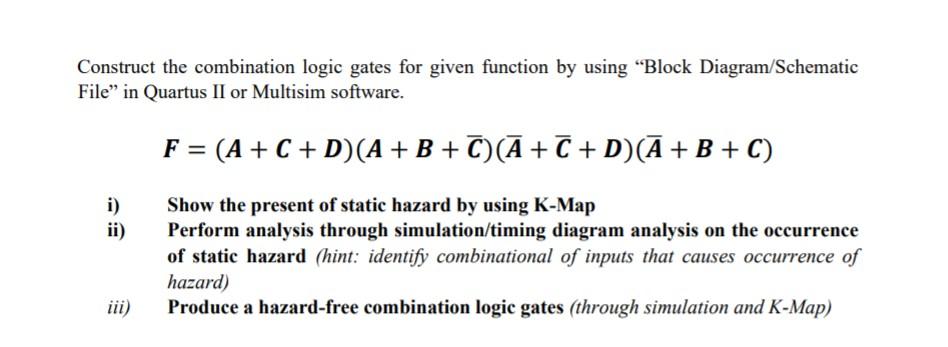

Construct the combination logic gates for given function by using “Block Diagram/Schematic File” in Quartus II or Multisim software. F = (A + C + D)(A + B+C)(A + C + D)(A+B+C) i) ii) Show the present of static hazard by using K-Map Perform analysis through simulation/timing diagram analysis on the occurrence of static hazard (hint: identify combinational of inputs that causes occurrence of hazard) Produce a hazard-free combination logic gates (through simulation and K-Map) iii)
