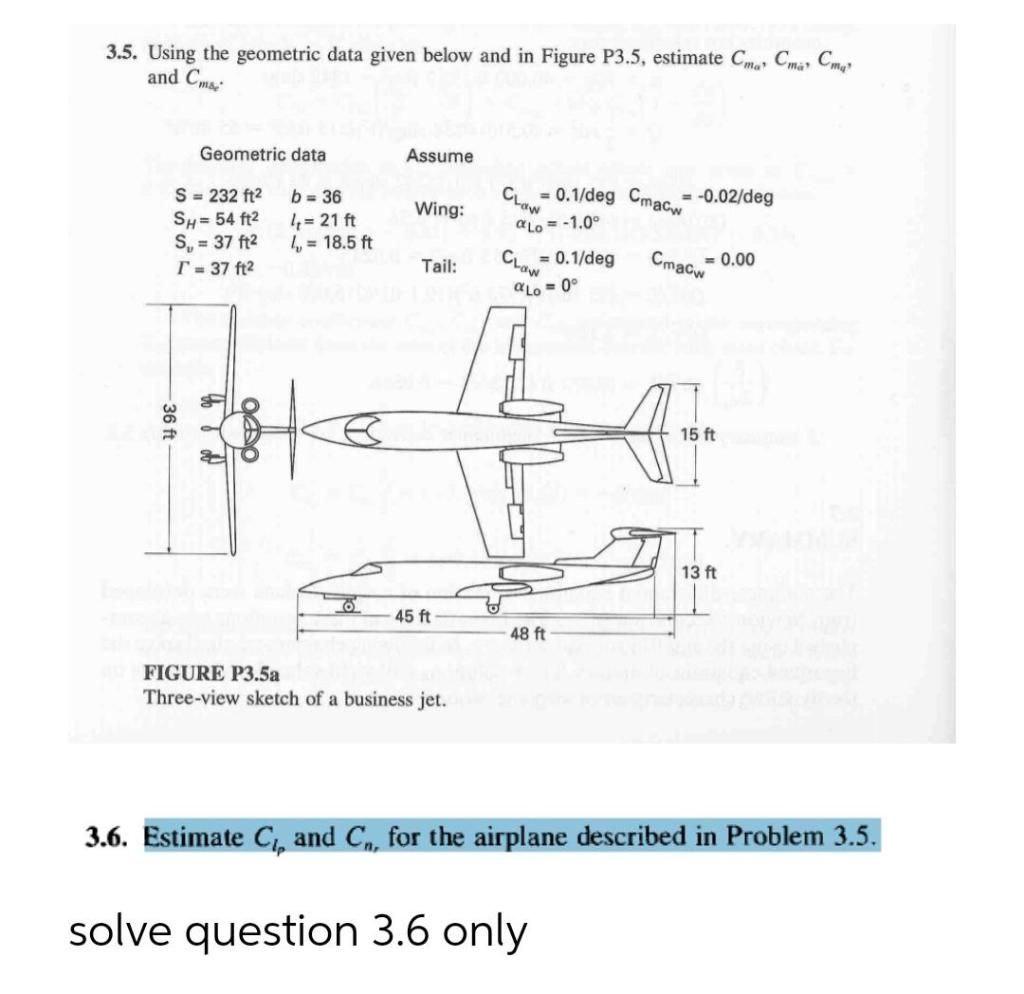

3.5. Using the geometric data given below and in Figure P3.5, estimate Cma, Cm, Cma and Cmo Geometric data Assume Clow =

[answerhappygod]

3 5 Using The Geometric Data Given Below And In Figure P3 5 Estimate Cma Cm Cma And Cmo Geometric Data Assume Clow 1 (69.38 KiB) Viewed 90 times

3.5. Using the geometric data given below and in Figure P3.5, estimate Cma, Cm, Cma and Cmo Geometric data Assume Clow = 0.1/deg Cmacw = -0.02/deg Wing: S = 232 ft2 Sh=54 ft2 S, = 37 ft2 T = 37 ft2 b = 36 11 = 21 ft 1 = 18.5 ft do = -1.0° Tail: Chow αμο = 0.00 = 0.1/deg - 0° Cmacw 15 ft 13 ft 45 ft 48 ft FIGURE P3.5a Three-view sketch of a business jet. 3.6. Estimate C, and C, for the airplane described in Problem 3.5. solve question 3.6 only
