Q2. The stress state within a solid is represented as [1 2 2 Oij = 2 1 2 MPa. L2 2 0.5 Evaluate the Cauchy's stresses at

[answerhappygod]

Q2 The Stress State Within A Solid Is Represented As 1 2 2 Oij 2 1 2 Mpa L2 2 0 5 Evaluate The Cauchy S Stresses At 1 (100.15 KiB) Viewed 38 times

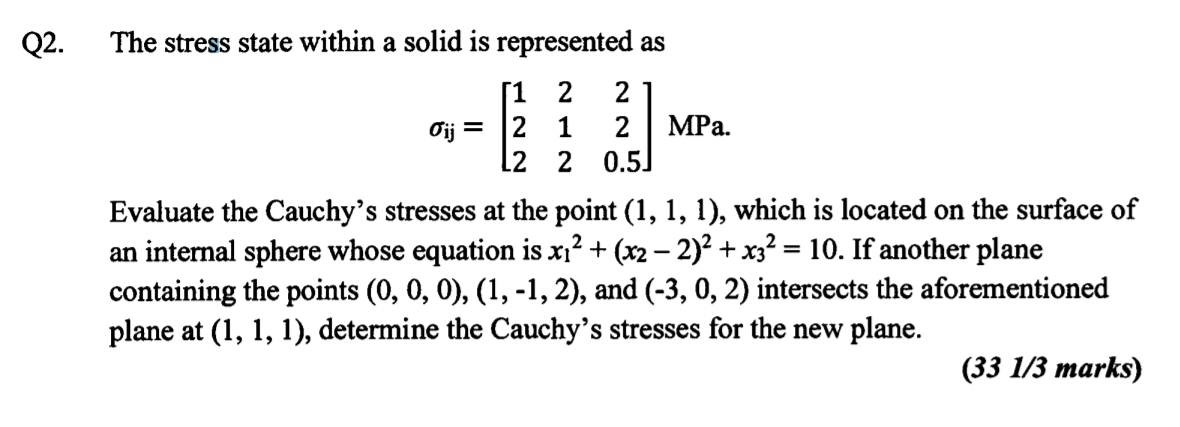

Q2. The stress state within a solid is represented as [1 2 2 Oij = 2 1 2 MPa. L2 2 0.5 Evaluate the Cauchy's stresses at the point (1, 1, 1), which is located on the surface of an internal sphere whose equation is x² + (x2 – 2)2 + x32 = 10. If another plane containing the points (0, 0, 0), (1,-1, 2), and (-3, 0, 2) intersects the aforementioned plane at (1, 1, 1), determine the Cauchy's stresses for the new plane. (33 1/3 marks) =
