a FA FB A metallic hook is subjected under 2 loads. Force A is 39kN directed at the negative x-axis and Force B is 44kN

Post by answerhappygod »

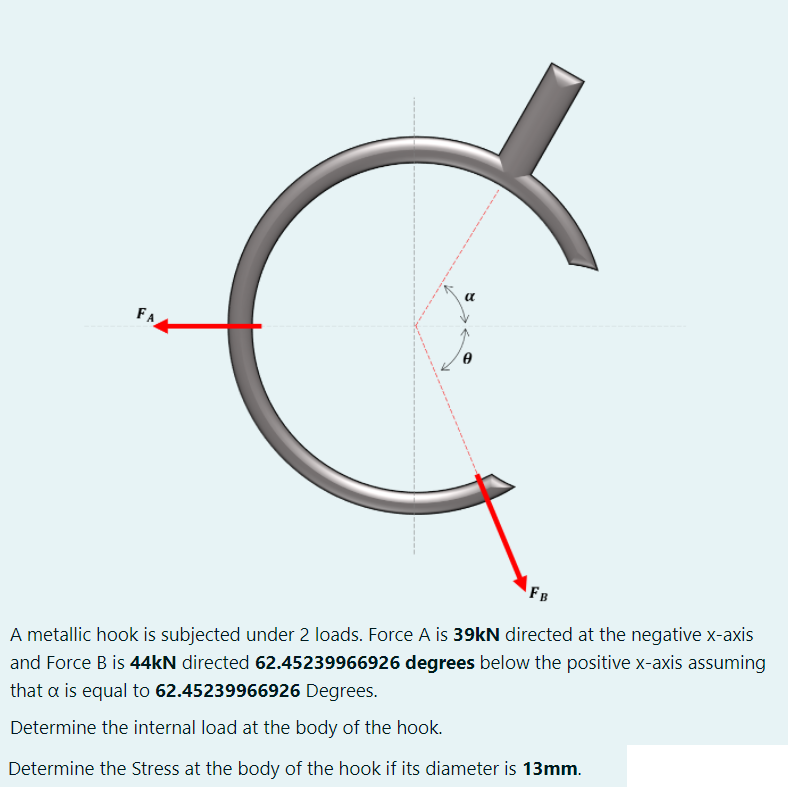

A Fa Fb A Metallic Hook Is Subjected Under 2 Loads Force A Is 39kn Directed At The Negative X Axis And Force B Is 44kn 1
A Fa Fb A Metallic Hook Is Subjected Under 2 Loads Force A Is 39kn Directed At The Negative X Axis And Force B Is 44kn 1 (84.09 KiB) Viewed 27 times
a FA FB A metallic hook is subjected under 2 loads. Force A is 39kN directed at the negative x-axis and Force B is 44kN directed 62.45239966926 degrees below the positive x-axis assuming that a is equal to 62.45239966926 Degrees. Determine the internal load at the body of the hook. Determine the Stress at the body of the hook if its diameter is 13mm.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
