- R 11 Y S C S G S Figure 1 A Control System With Unit Feedback Here C S Is The Transfer Function Of The Controlle 1 (255.6 KiB) Viewed 72 times
R() 11 Y(s) C(s) G(s) Figure 1: A control system with unit feedback Here, C(s) is the transfer function of the controlle
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
R() 11 Y(s) C(s) G(s) Figure 1: A control system with unit feedback Here, C(s) is the transfer function of the controlle

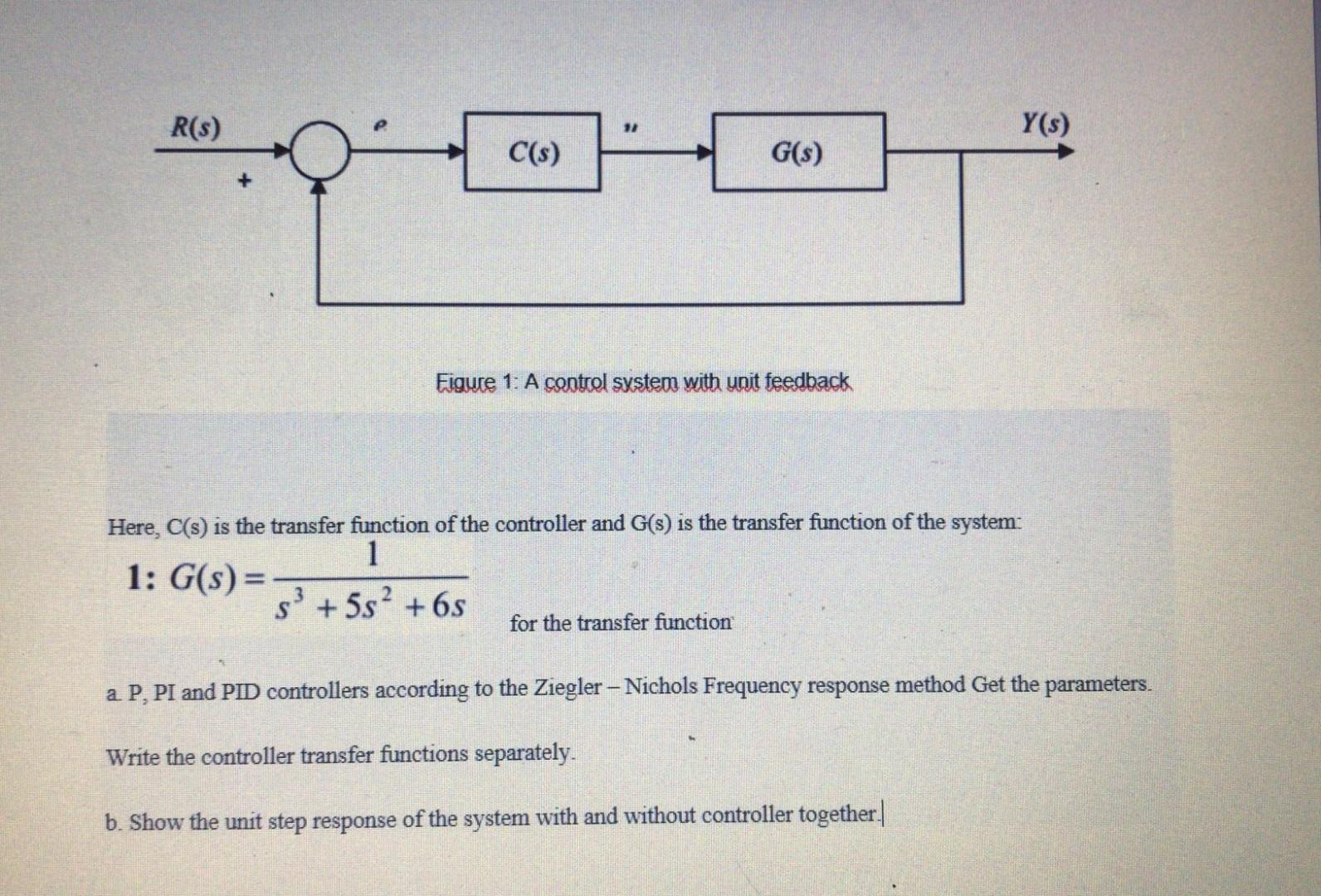

R() 11 Y(s) C(s) G(s) Figure 1: A control system with unit feedback Here, C(s) is the transfer function of the controller and G(s) is the transfer function of the system: 1 1: G(s) = S + 582 + 6s for the transfer function a P, PI and PID controllers according to the Ziegler - Nichols Frequency response method Get the parameters. Write the controller transfer functions separately. b. Show the unit step response of the system with and without controller together.
