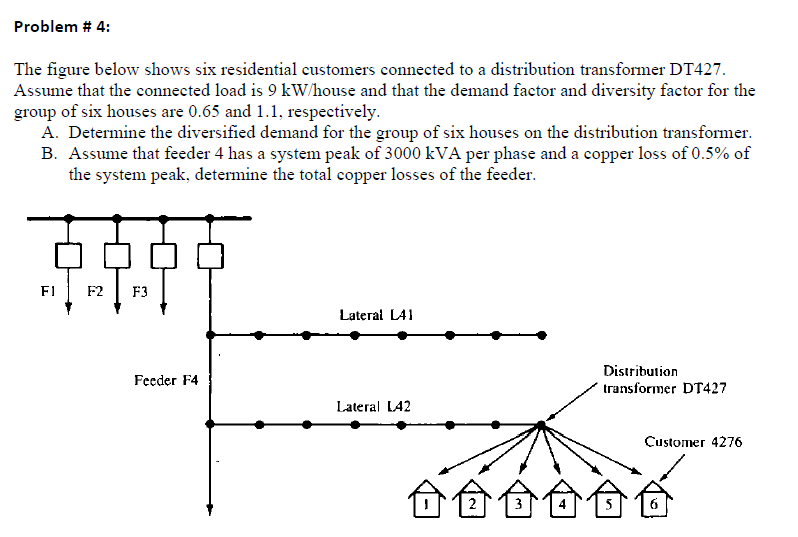

Problem # 4: The figure below shows six residential customers connected to a distribution transformer DT427. Assume that

[answerhappygod]

Problem 4 The Figure Below Shows Six Residential Customers Connected To A Distribution Transformer Dt427 Assume That 1 (36.23 KiB) Viewed 113 times

Problem # 4: The figure below shows six residential customers connected to a distribution transformer DT427. Assume that the connected load is 9 kW/house and that the demand factor and diversity factor for the group of six houses are 0.65 and 1.1, respectively. A. Determine the diversified demand for the group of six houses on the distribution transformer. B. Assume that feeder 4 has a system peak of 3000 kVA per phase and a copper loss of 0.5% of the system peak, determine the total copper losses of the feeder. E1 F2 F3 Lateral L41 Feeder F4 Distribution transformer DT427 Lateral LA2 Customer 4276 Ô 91
