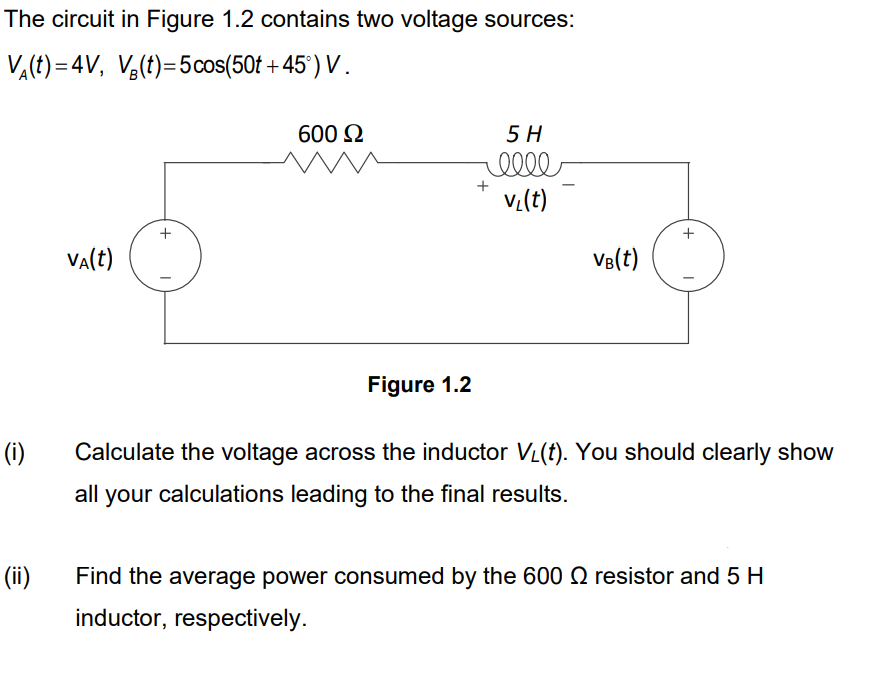

The circuit in Figure 1.2 contains two voltage sources: VA(t)=4V, V₂(t)=5 cos(50t+45°) V. 600 Ω 5 H elle v₁(t) VA(t) VB(
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The circuit in Figure 1.2 contains two voltage sources: VA(t)=4V, V₂(t)=5 cos(50t+45°) V. 600 Ω 5 H elle v₁(t) VA(t) VB(
The circuit in Figure 1.2 contains two voltage sources: VA(t)=4V, V₂(t)=5 cos(50t+45°) V. 600 Ω 5 H elle v₁(t) VA(t) VB(t) Figure 1.2 (i) Calculate the voltage across the inductor V₁(t). You should clearly show all your calculations leading to the final results. (ii) Find the average power consumed by the 600 resistor and 5 H inductor, respectively. + I + I
