(This is a bonus question) The MOSFET's in the below circuit are matched with kn = kp = 1mA/V2, and Vin=-V Tp = 0.5 V. C

[answerhappygod]

This Is A Bonus Question The Mosfet S In The Below Circuit Are Matched With Kn Kp 1ma V2 And Vin V Tp 0 5 V C 1 (34.42 KiB) Viewed 126 times

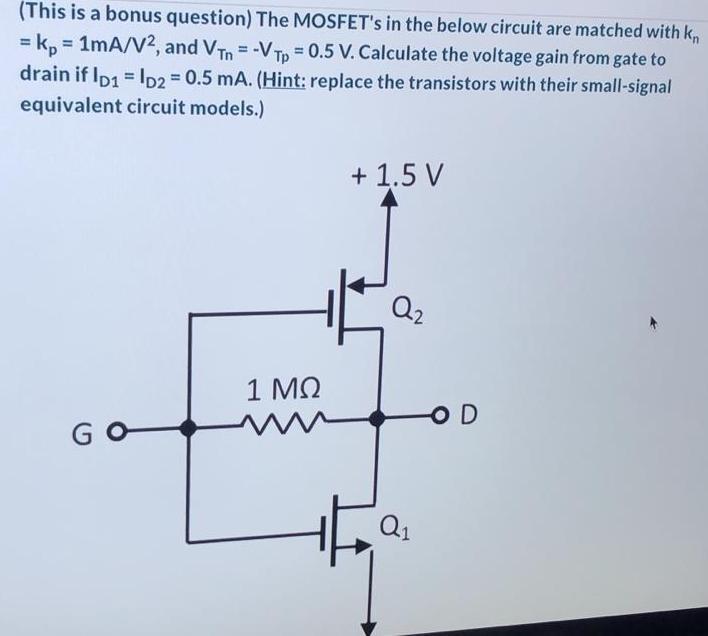

(This is a bonus question) The MOSFET's in the below circuit are matched with kn = kp = 1mA/V2, and Vin=-V Tp = 0.5 V. Calculate the voltage gain from gate to drain if Ip1 = 102 = 0.5 mA. (Hint: replace the transistors with their small-signal equivalent circuit models.) + 1.5 V Q2 1 M2 OD GO Q1
