P2. In a Boost DC-DC converter, L=250H. It is operating in DC steady state under the following conditions: Vin=12V, D=0.

Post by answerhappygod »

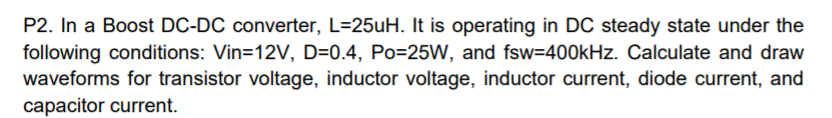

P2 In A Boost Dc Dc Converter L 250h It Is Operating In Dc Steady State Under The Following Conditions Vin 12v D 0 1
P2 In A Boost Dc Dc Converter L 250h It Is Operating In Dc Steady State Under The Following Conditions Vin 12v D 0 1 (21.86 KiB) Viewed 156 times
P2. In a Boost DC-DC converter, L=250H. It is operating in DC steady state under the following conditions: Vin=12V, D=0.4, Po=25W, and fsw=400kHz. Calculate and draw waveforms for transistor voltage, inductor voltage, inductor current, diode current, and capacitor current
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
