The BJT in the below amplifier circuit has infinitely large beta, and operated with 8m = 1 mA/V. Calculate f of this amp

Post by answerhappygod »

The Bjt In The Below Amplifier Circuit Has Infinitely Large Beta And Operated With 8m 1 Ma V Calculate F Of This Amp 1
The Bjt In The Below Amplifier Circuit Has Infinitely Large Beta And Operated With 8m 1 Ma V Calculate F Of This Amp 1 (23.48 KiB) Viewed 144 times

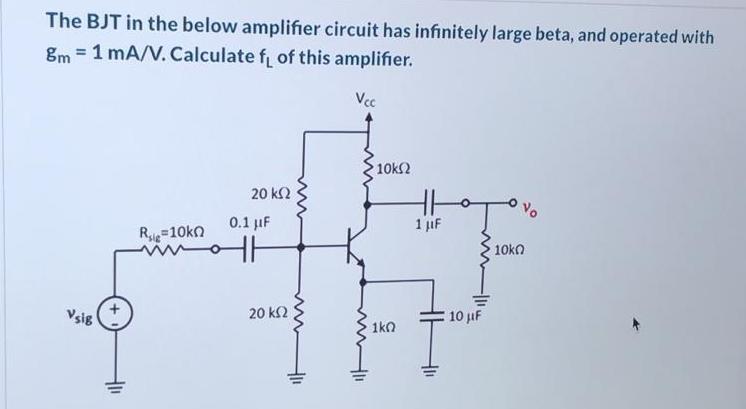

The BJT in the below amplifier circuit has infinitely large beta, and operated with 8m = 1 mA/V. Calculate f of this amplifier. Vec 10k 2 20 ΚΩ vo 1 LIF 0.1 F Rre=100 HE 10kΩ w Vsig 20 ΚΩ 10 JIF 1ko 10 HD TH
