P1. A Buck DC-DC converter is to be design for Vin=20V, Vo=12V, and the maximum output power Po=72W. The switching frequ

Post by answerhappygod »

P1 A Buck Dc Dc Converter Is To Be Design For Vin 20v Vo 12v And The Maximum Output Power Po 72w The Switching Frequ 1
P1 A Buck Dc Dc Converter Is To Be Design For Vin 20v Vo 12v And The Maximum Output Power Po 72w The Switching Frequ 1 (25.2 KiB) Viewed 157 times

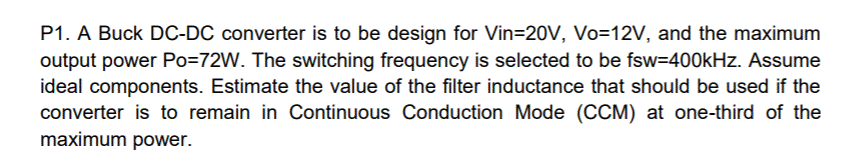

P1. A Buck DC-DC converter is to be design for Vin=20V, Vo=12V, and the maximum output power Po=72W. The switching frequency is selected to be fsw=400kHz. Assume ideal components. Estimate the value of the filter inductance that should be used if the converter is to remain in Continuous Conduction Mode (CCM) at one-third of the maximum power.
