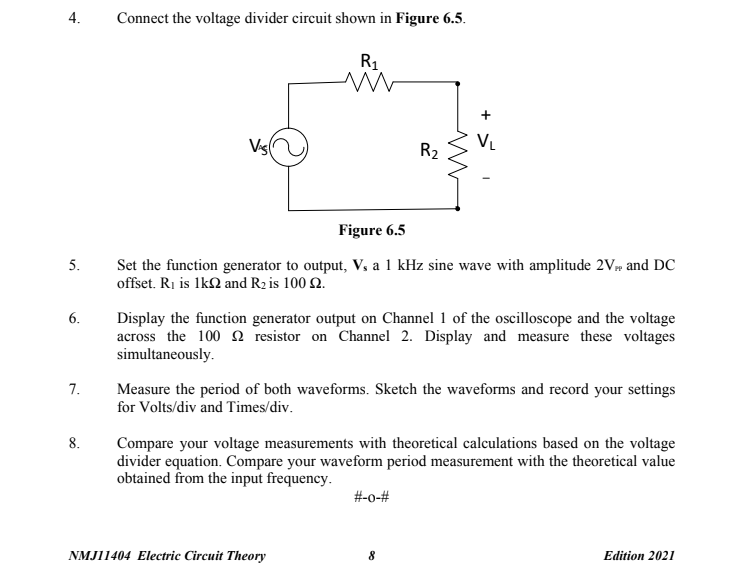

4. Connect the voltage divider circuit shown in Figure 6.5. R1 W + w Vs R2 VL Figure 6.5 5. 6. Set the function generator to output, Vs a 1 kHz sine wave with amplitude 2Vand DC offset. R is 1ks and Rz is 100 2. Display the function generator output on Channel 1 of the oscilloscope and the voltage across the 100 resistor on Channel 2. Display and measure these voltages simultaneously. Measure the period of both waveforms. Sketch the waveforms and record your settings for Volts/div and Times/div. Compare your voltage measurements with theoretical calculations based on the voltage divider equation. Compare your waveform period measurement with the theoretical value obtained from the input frequency. #-o-# 7. 8. NMJ11404 Electric Circuit Theory 8 Edition 2021
