Hi, I've drawn out the code for this question but I am not sure
how to complete this question;
"Outline how you would modify the relevant sections of your code
in (a) to implement the following. If the drill takes more than 2
seconds to reach the required depth this typically indicates that
the drill bit is blunt and needs replacement. If this occurs the
cycle should complete and then an additional output [Drill Bit
Watchdog (Y5)] should flash to alert the user for drill bit
replacement. Once the cycle is restarted this output should cease
flashing."

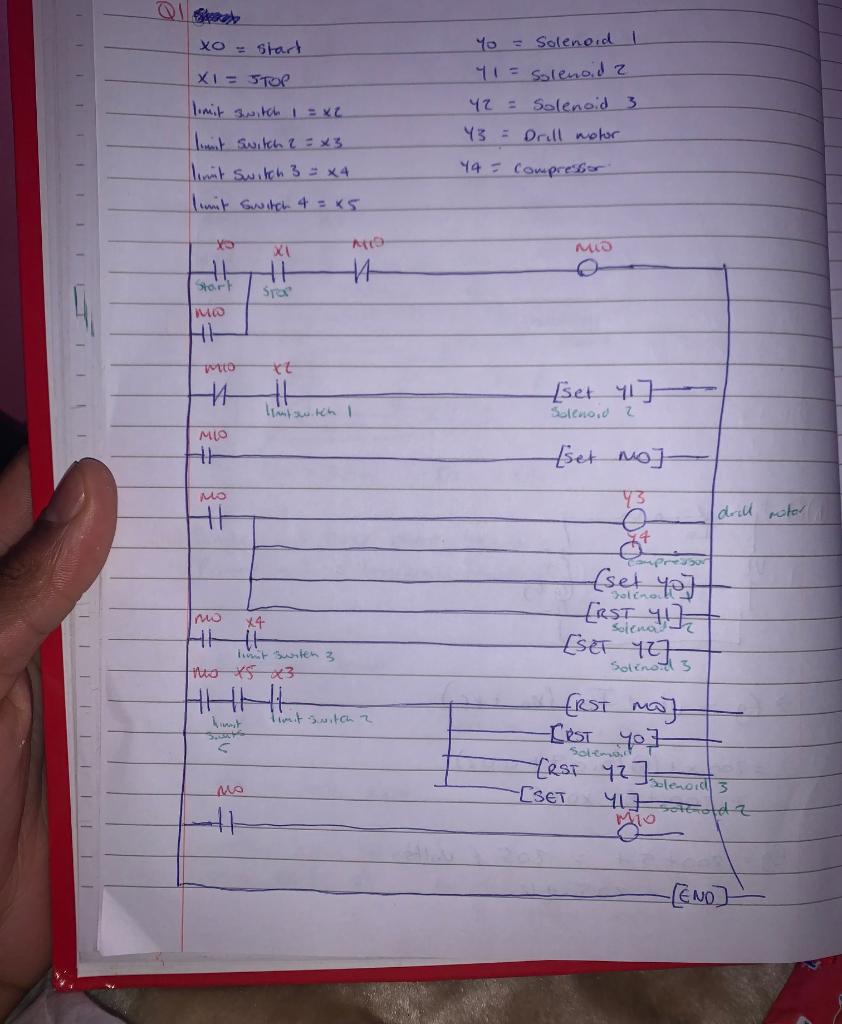

Hi I Ve Drawn Out The Code For This Question But I Am Not Sure How To Complete This Question Outline How You Would Mo 1 (89.22 KiB) Viewed 113 times
Xo start XI= STOP yo - Solenoid 1 41 = Solenoid 2 42 = Solenoid 3 Y = Drill motor limit switch 1= x2 limit switch 2 = x3 limit Switch 3 = x4 lumit Switch 4 = 45 44 = Compressor yo XL MID O Start sro in HI tt muito 4 ㅔ (set 1 lintowitch I Soleno, Z MO HH (set no] MO 73 41 drill motor pe (set [! [SET 1 solenal mo X4 HI limit switen 3 mo x5 23 Solinod 3 HHHH timit switch 2 ERST ma] -ERST yo7 ERST YZ] solenoid 3 41 Sothold 2 Solemmil M -[SET +1 MIO -[END]
