Question 4: (10 marks) Refer to the AC circuit shown previously in Fig. 2, Use Simulink to find: a) the real and reactiv

Post by **answerhappygod** » Fri Jan 21, 2022 8:46 am

: Question 4 10 Marks Refer To The Ac Circuit Shown Previously In Fig 2 Use Simulink To Find A The Real And Reactiv 1 (43.14 KiB) Viewed 129 times

: Question 4 10 Marks Refer To The Ac Circuit Shown Previously In Fig 2 Use Simulink To Find A The Real And Reactiv 2 (42.06 KiB) Viewed 129 times

Use Sumilink
please Show the names of the Components

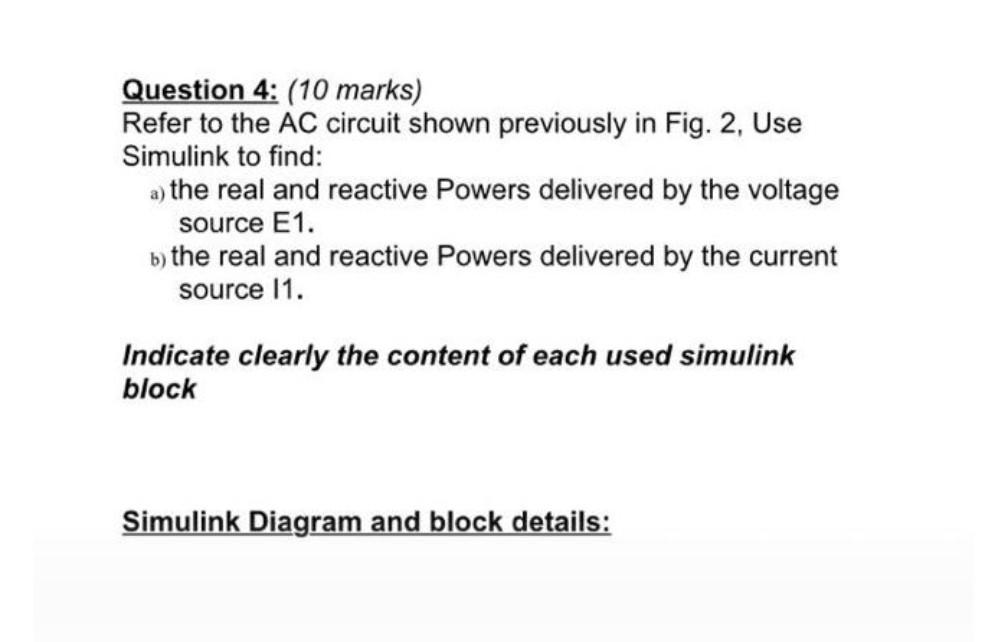

Question 4: (10 marks) Refer to the AC circuit shown previously in Fig. 2, Use Simulink to find: a) the real and reactive Powers delivered by the voltage source E1. b) the real and reactive Powers delivered by the current source 11. Indicate clearly the content of each used simulink block Simulink Diagram and block details:

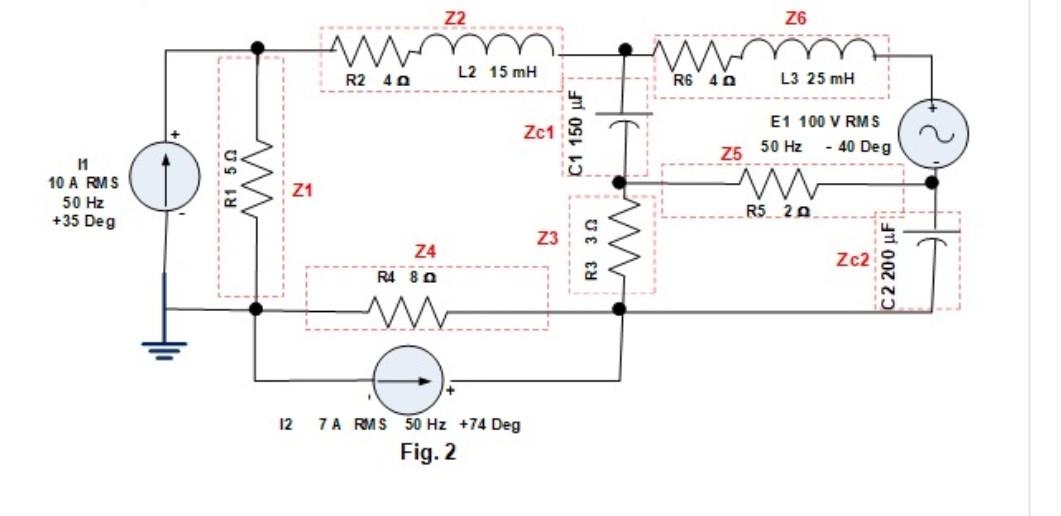

Z2 26 W w R2 40 L2 15 mH R6 40 L3 25 mH Zc1 C1 150 LF E1 100 V RMS 50 Hz - 40 Deg Z5 11 10 A RMS 50 Hz +35 Deg OBS Z1 W R5 20 Z3 Z4 R4 8 R3 30 Zc2 C2 200 uF w 12 7A RMS 50 Hz +74 Deg Fig. 2
