Report #9 : PID controller using MATLAB Derive the transfer function of the RLC circuit where the input is power supply

[answerhappygod]

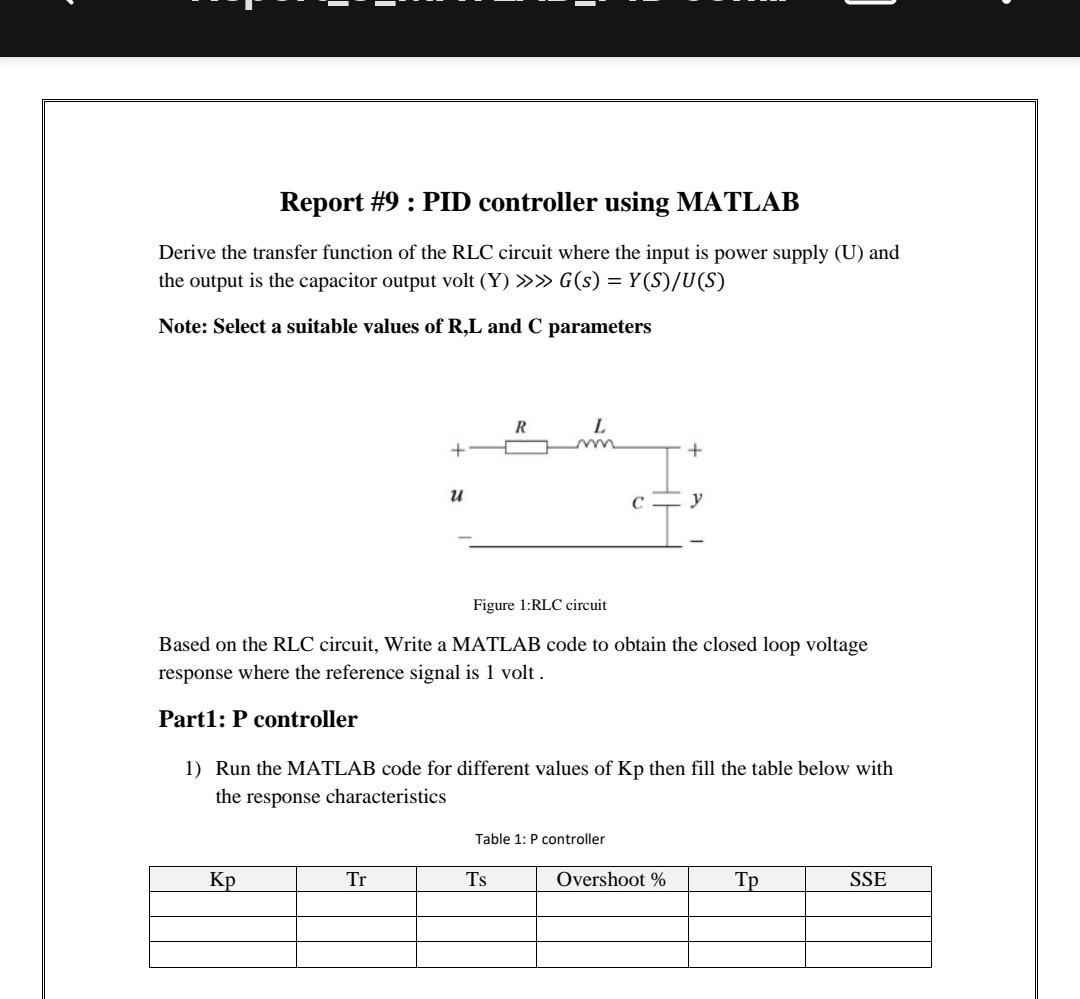

Report 9 Pid Controller Using Matlab Derive The Transfer Function Of The Rlc Circuit Where The Input Is Power Supply 1 (80.13 KiB) Viewed 97 times

Report #9 : PID controller using MATLAB Derive the transfer function of the RLC circuit where the input is power supply (U) and the output is the capacitor output volt (Y) »»G(s) = Y(S)/U(S) Note: Select a suitable values of R,L and C parameters R L + + u с у Figure 1: RLC circuit Based on the RLC circuit, Write a MATLAB code to obtain the closed loop voltage response where the reference signal is 1 volt. Part1: P controller 1) Run the MATLAB code for different values of Kp then fill the table below with the response characteristics Table 1: P controller Кр Tr Ts Overshoot % Тр SSE
