Question 7 3 pts If the NOR gates in the D type flip flop are replaced by NAND gates, what would the output A look like?

Post by answerhappygod »

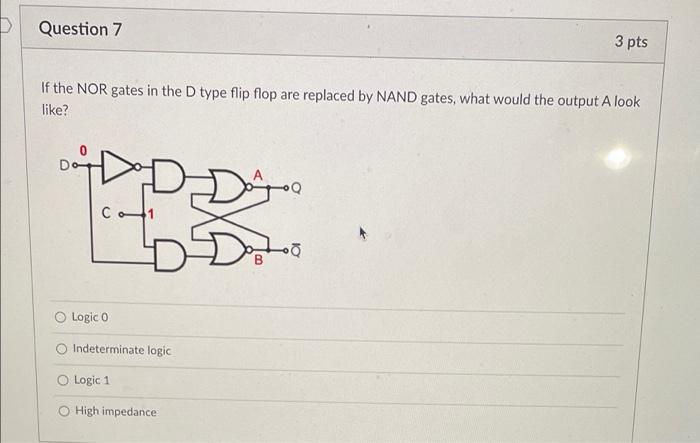

Question 7 3 Pts If The Nor Gates In The D Type Flip Flop Are Replaced By Nand Gates What Would The Output A Look Like 1
Question 7 3 Pts If The Nor Gates In The D Type Flip Flop Are Replaced By Nand Gates What Would The Output A Look Like 1 (29.9 KiB) Viewed 103 times
Question 7 3 pts If the NOR gates in the D type flip flop are replaced by NAND gates, what would the output A look like? Q C D De oo Logic 0 Indeterminate logic O Logic 1 High impedance
