The following binary-weighted-input DAC has Vref = 6V. What should be "Rf/R" if we want the DAC to have an output range

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The following binary-weighted-input DAC has Vref = 6V. What should be "Rf/R" if we want the DAC to have an output range

Post by answerhappygod »

The Following Binary Weighted Input Dac Has Vref 6v What Should Be Rf R If We Want The Dac To Have An Output Range 1
The Following Binary Weighted Input Dac Has Vref 6v What Should Be Rf R If We Want The Dac To Have An Output Range 1 (59.3 KiB) Viewed 117 times

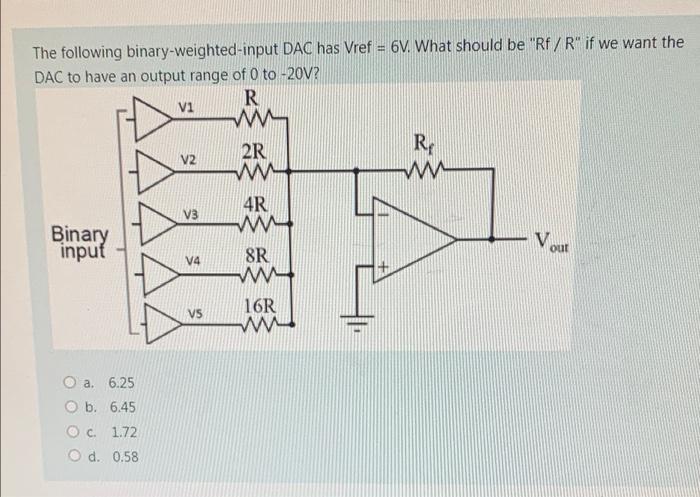

The following binary-weighted-input DAC has Vref = 6V. What should be "Rf/R" if we want the DAC to have an output range of 0 to -20V? R Vi Rp V2 w Binary input 2R wi 4R w 8R w 16R w V our V4 VS a. 6.25 b. 6.45 c. 1.72 d. 0.58
