Question 1 As a young engineer, you are asked to design the single-phase distribution box (DB) for a link- house. Show t

[answerhappygod]

Question 1 As A Young Engineer You Are Asked To Design The Single Phase Distribution Box Db For A Link House Show T 1 (94.63 KiB) Viewed 66 times

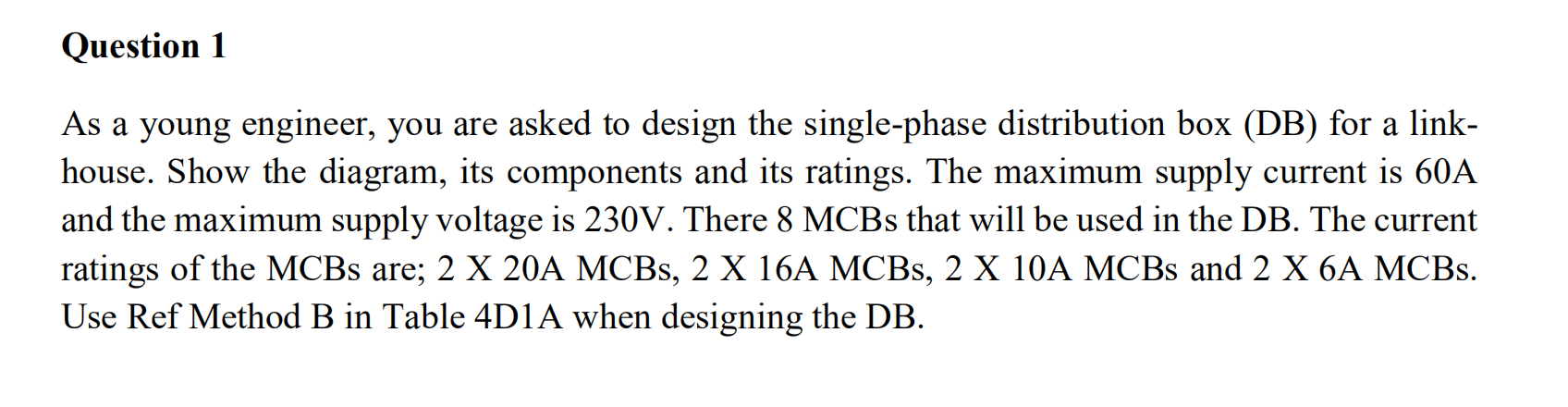

Question 1 As a young engineer, you are asked to design the single-phase distribution box (DB) for a link- house. Show the diagram, its components and its ratings. The maximum supply current is 60A and the maximum supply voltage is 230V. There 8 MCBs that will be used in the DB. The current ratings of the MCBs are; 2 X 20A MCBs, 2 X 16A MCBs, 2 X 10A MCBs and 2 X 6A MCBs. Use Ref Method B in Table 4D1A when designing the DB.
