The beta ß of a bipolar transistor shown below varies from 12 to 75. The load resistance is Rc=1.20. The DC supply is Vc

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The beta ß of a bipolar transistor shown below varies from 12 to 75. The load resistance is Rc=1.20. The DC supply is Vc

Post by answerhappygod »

The Beta Ss Of A Bipolar Transistor Shown Below Varies From 12 To 75 The Load Resistance Is Rc 1 20 The Dc Supply Is Vc 1
The Beta Ss Of A Bipolar Transistor Shown Below Varies From 12 To 75 The Load Resistance Is Rc 1 20 The Dc Supply Is Vc 1 (59.79 KiB) Viewed 64 times

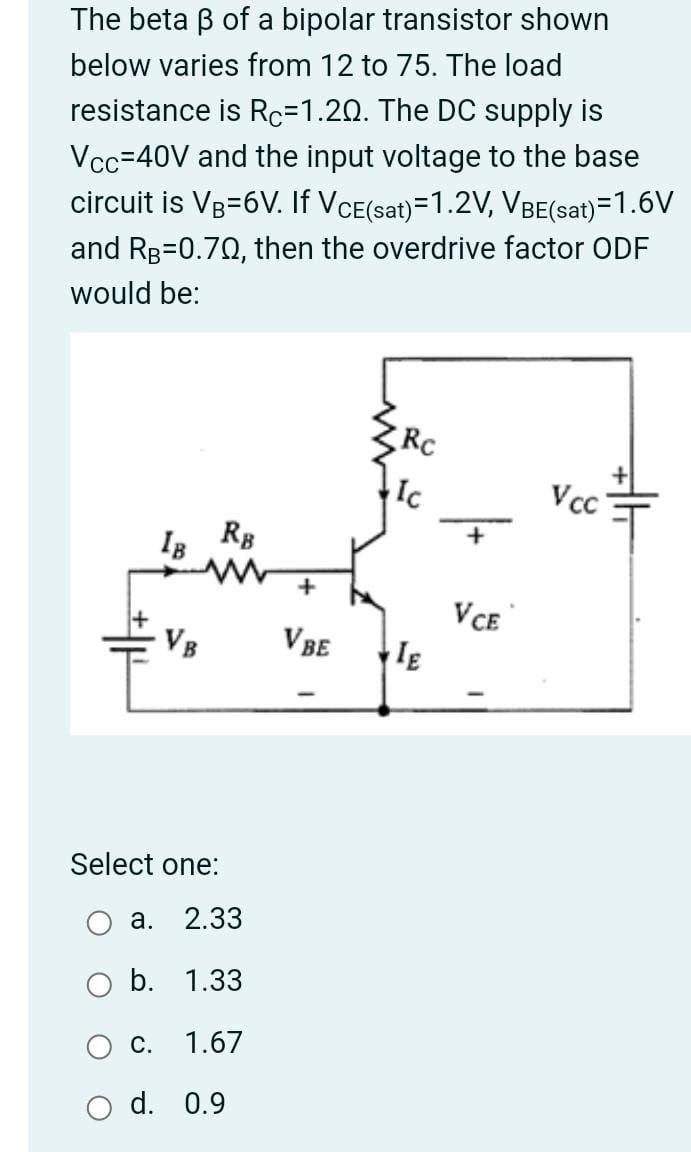

The beta ß of a bipolar transistor shown below varies from 12 to 75. The load resistance is Rc=1.20. The DC supply is Vcc=40V and the input voltage to the base circuit is V8=6V. If VCE(sat)=1.2V, VBE(sat)=1.6V and RB=0.70, then the overdrive factor ODF would be: GRc lic Vcc +H IB Re + + VCE VB VBE LE Select one: a. 2.33 b. 1.33 C. 1.67 d. 0.9
