The input voltage of the following figure is Vs=200 V with load resistance of R=50. The load and stray inductances are n

Post by answerhappygod »

The Input Voltage Of The Following Figure Is Vs 200 V With Load Resistance Of R 50 The Load And Stray Inductances Are N 1
The Input Voltage Of The Following Figure Is Vs 200 V With Load Resistance Of R 50 The Load And Stray Inductances Are N 1 (49.39 KiB) Viewed 73 times

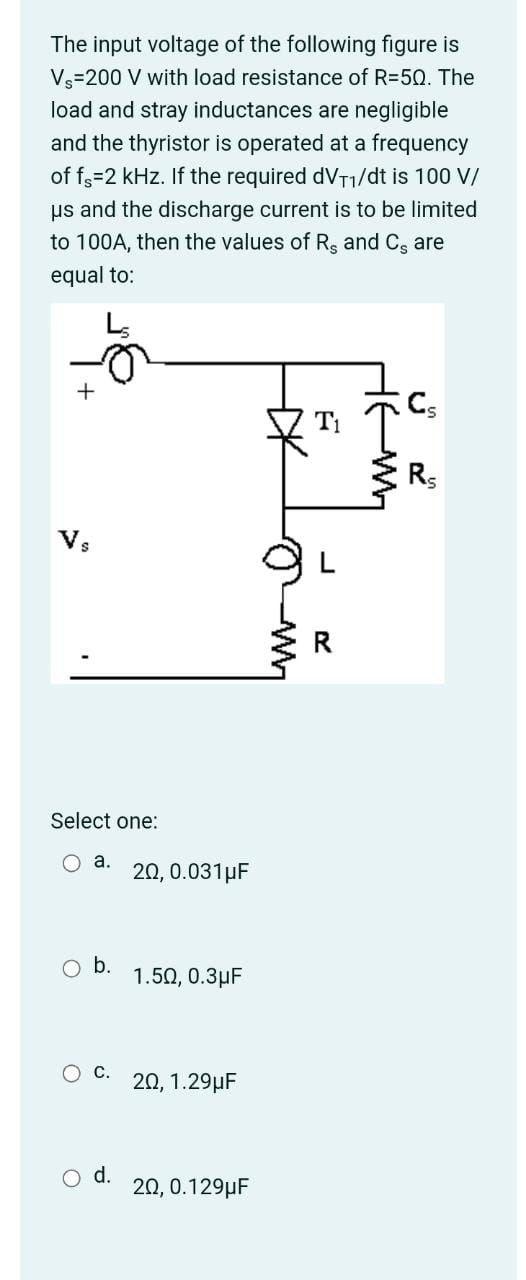

The input voltage of the following figure is Vs=200 V with load resistance of R=50. The load and stray inductances are negligible and the thyristor is operated at a frequency of fs=2 kHz. If the required dV11/dt is 100 V/ us and the discharge current is to be limited to 100A, then the values of Rs and Cs are equal to: tar Ti RS VS Select one: оа. 20, 0.031F b. 1.50, 0.3F C. 29, 1.29uF d. 20, 0.129pF
