= A single phase full converter is connected to a 120 V, 60 Hz supply. It has a RL load having L=6.5 mH, R=0.50 and E =

[answerhappygod]

A Single Phase Full Converter Is Connected To A 120 V 60 Hz Supply It Has A Rl Load Having L 6 5 Mh R 0 50 And E 1 (70.36 KiB) Viewed 56 times

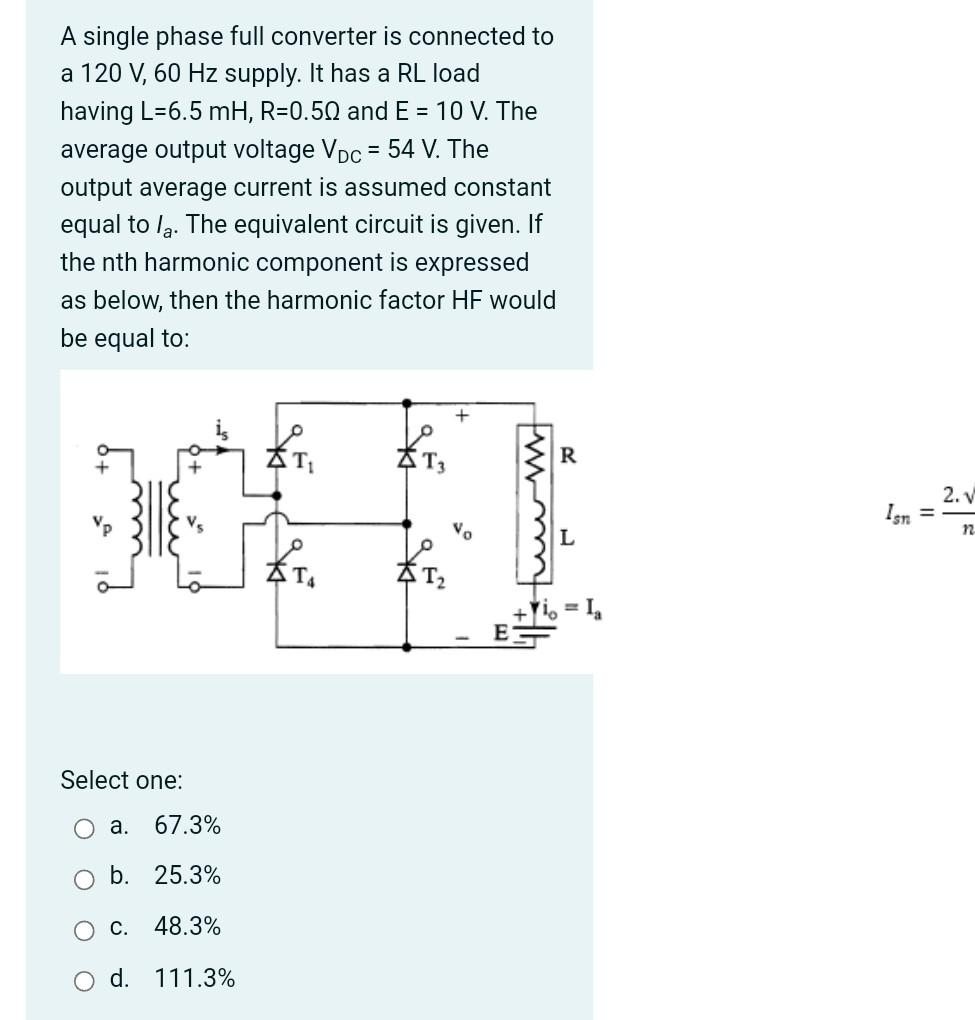

= A single phase full converter is connected to a 120 V, 60 Hz supply. It has a RL load having L=6.5 mH, R=0.50 and E = 10 V. The average output voltage Voc = 54 V. The output average current is assumed constant equal to la. The equivalent circuit is given. If the nth harmonic component is expressed as below, then the harmonic factor HF would be equal to: + R 2. Ign Vo L n Kia ST2 = 12 E Select one: a. 67.3% b. 25.3% O C. 48.3% O d. 111.3%
