Consider the following circuit used to provide power for an inductive RL load. The input voltage is Vs=220V and the load

Post by answerhappygod »

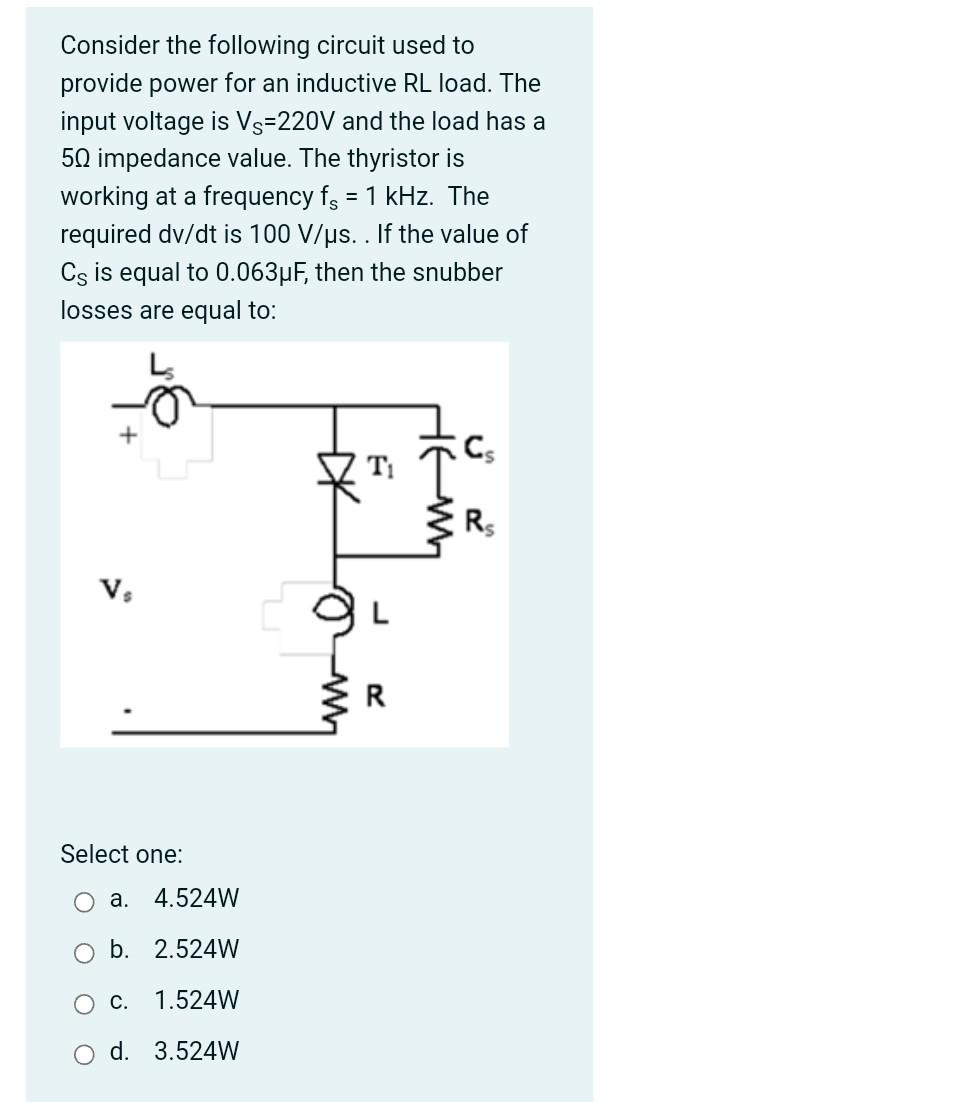

Consider The Following Circuit Used To Provide Power For An Inductive Rl Load The Input Voltage Is Vs 220v And The Load 1
Consider The Following Circuit Used To Provide Power For An Inductive Rl Load The Input Voltage Is Vs 220v And The Load 1 (63.42 KiB) Viewed 64 times
Consider the following circuit used to provide power for an inductive RL load. The input voltage is Vs=220V and the load has a 50 impedance value. The thyristor is working at a frequency fs = 1 kHz. The required dv/dt is 100 V/us. . If the value of Cs is equal to 0.063uF, then the snubber losses are equal to: + Ti RS W R Select one: a. 4.524W b. 2.524W O C. 1.524W d. 3.524W
