Consider the following circuit used to provide power for an inductive RL load. The input voltage is Vs=150V and the load

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Consider the following circuit used to provide power for an inductive RL load. The input voltage is Vs=150V and the load

Post by answerhappygod »

Consider The Following Circuit Used To Provide Power For An Inductive Rl Load The Input Voltage Is Vs 150v And The Load 1
Consider The Following Circuit Used To Provide Power For An Inductive Rl Load The Input Voltage Is Vs 150v And The Load 1 (68.3 KiB) Viewed 84 times

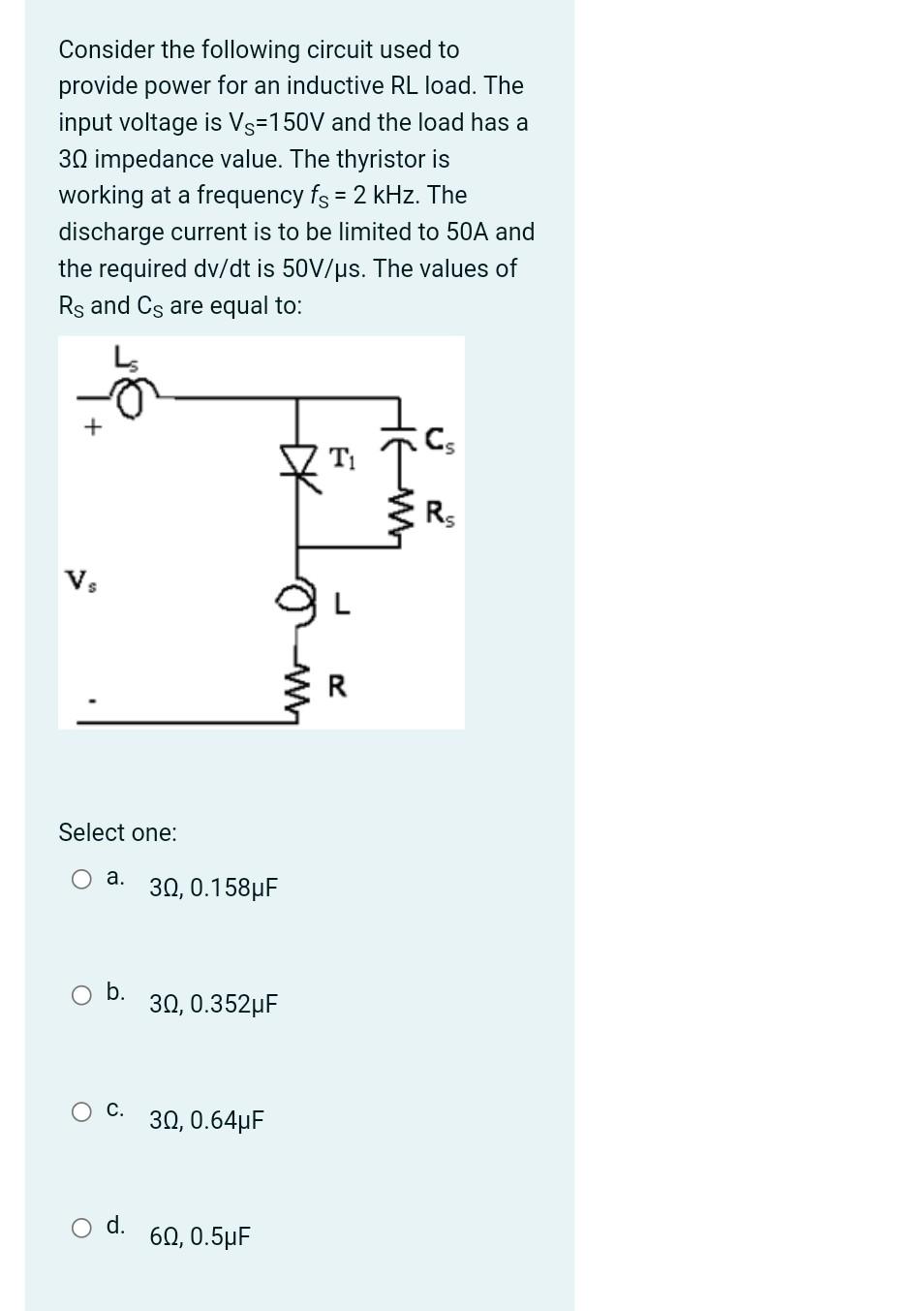

Consider the following circuit used to provide power for an inductive RL load. The input voltage is Vs=150V and the load has a 30 impedance value. The thyristor is working at a frequency fs = 2 kHz. The discharge current is to be limited to 50A and the required dv/dt is 50V/us. The values of Rs and Cs are equal to: = Cs T: RS Vs R Select one: a. 30, 0.158°F b. 31,0.352uF C. 31, 0.64uF O d. 61, 0.5uF
