A three phase full wave rectifier is shown below. The input phase voltage peak is Vm=145.1 V. The load is purely resisti

Post by answerhappygod »

A Three Phase Full Wave Rectifier Is Shown Below The Input Phase Voltage Peak Is Vm 145 1 V The Load Is Purely Resisti 1
A Three Phase Full Wave Rectifier Is Shown Below The Input Phase Voltage Peak Is Vm 145 1 V The Load Is Purely Resisti 1 (56.74 KiB) Viewed 65 times

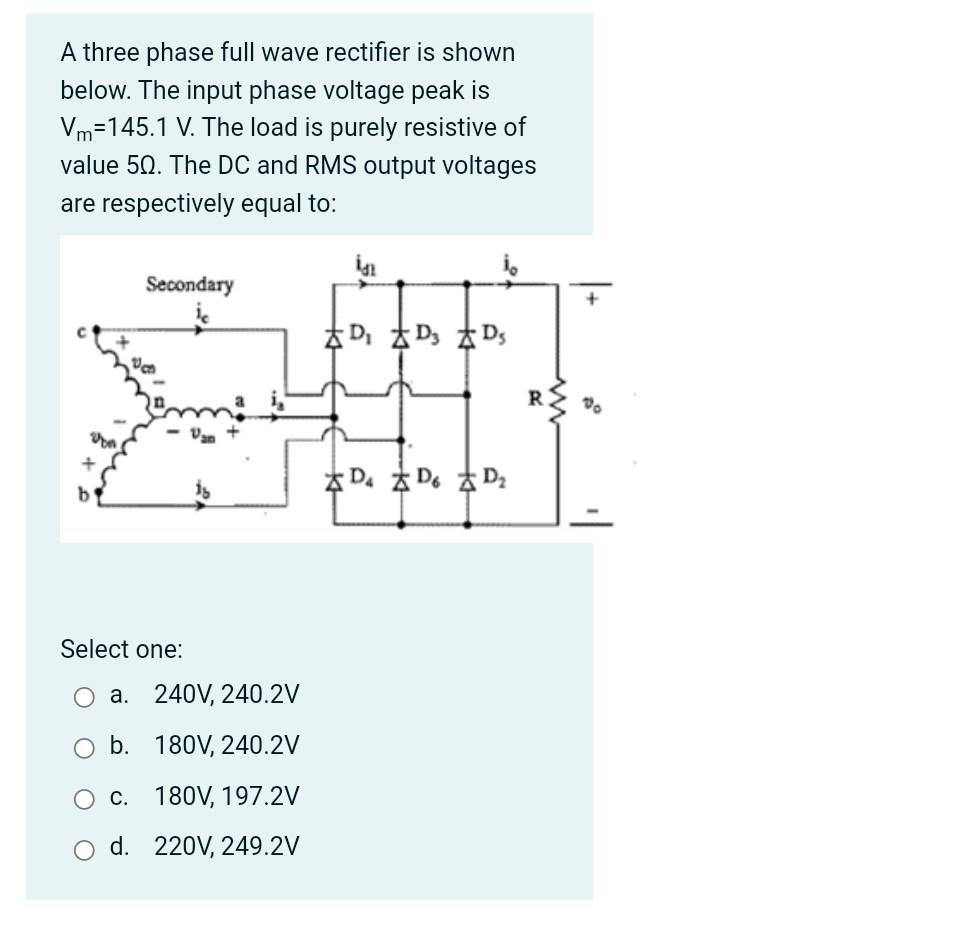

A three phase full wave rectifier is shown below. The input phase voltage peak is Vm=145.1 V. The load is purely resistive of value 50. The DC and RMS output voltages are respectively equal to: Secondary DADDs *DAD AD2 Do b Select one: a. 240V, 240.2V b. 180V, 240.2V O c. 180V, 197.2V d. 220V, 249.2V
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
