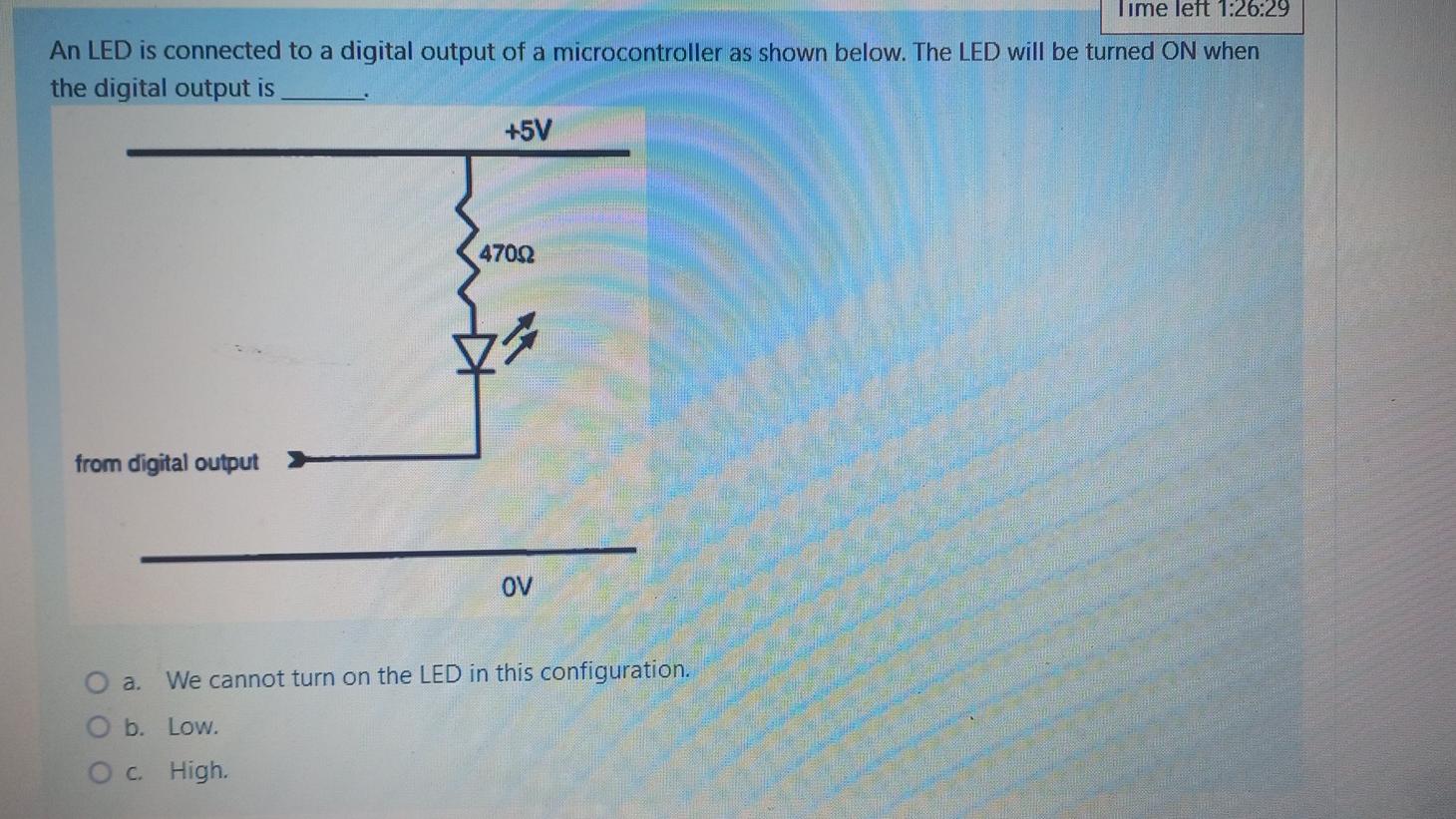

Time left 1:26:29 An LED is connected to a digital output of a microcontroller as shown below. The LED will be turned ON when the digital output is +5V 47092 from digital output OV O a. We cannot turn on the LED in this configuration. O b. Low. O c. High.

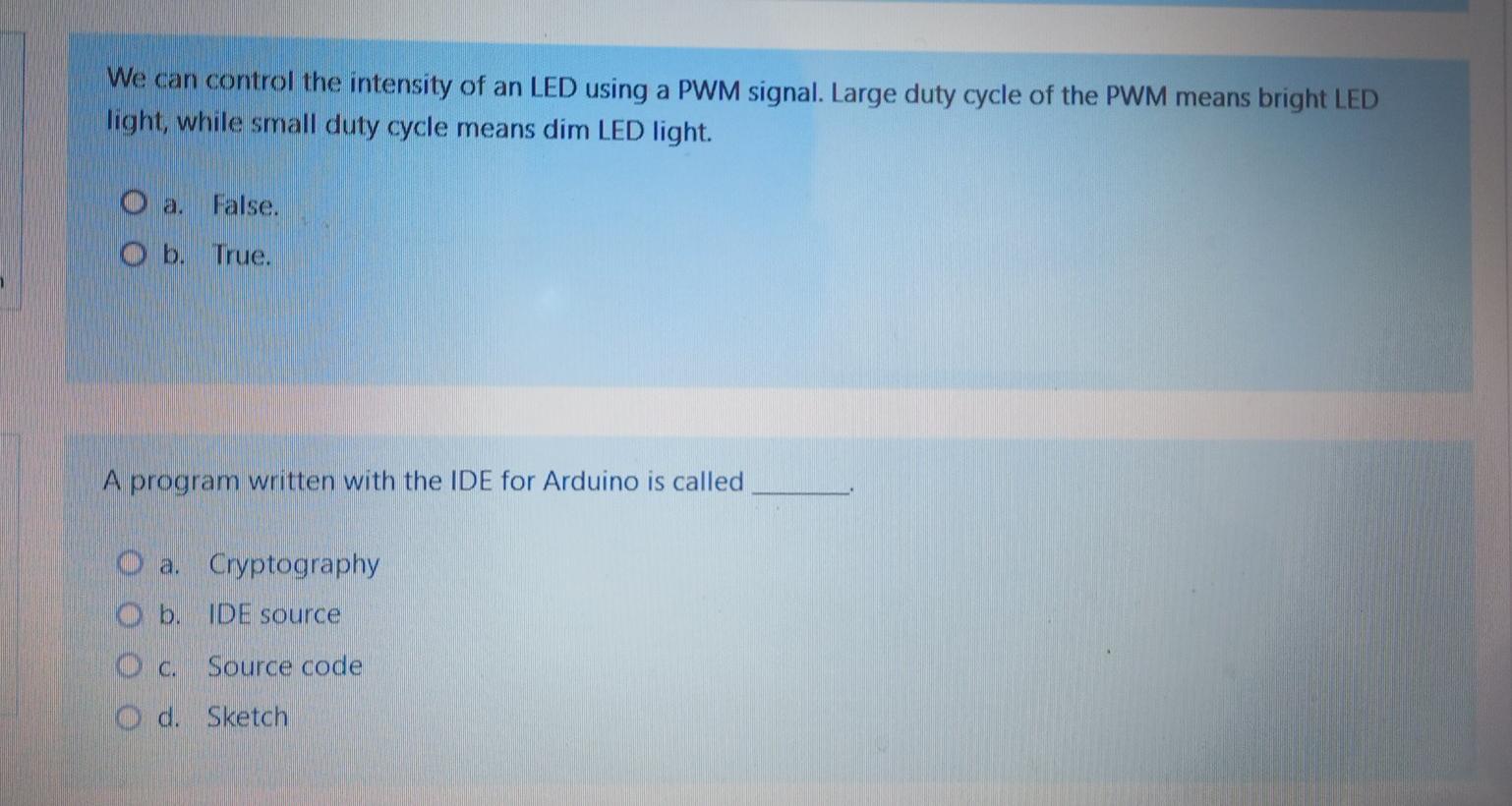

We can control the intensity of an LED using a PWM signal. Large duty cycle of the PWM means bright LED light, while small duty cycle means dim LED light. O a. False. ob. True. A program written with the IDE for Arduino is called O a. Cryptography O b. De source Oc Source code d. Sketch
