Q11

Post by answerhappygod »

Q11
Q11 1
Q11 1 (177.6 KiB) Viewed 140 times

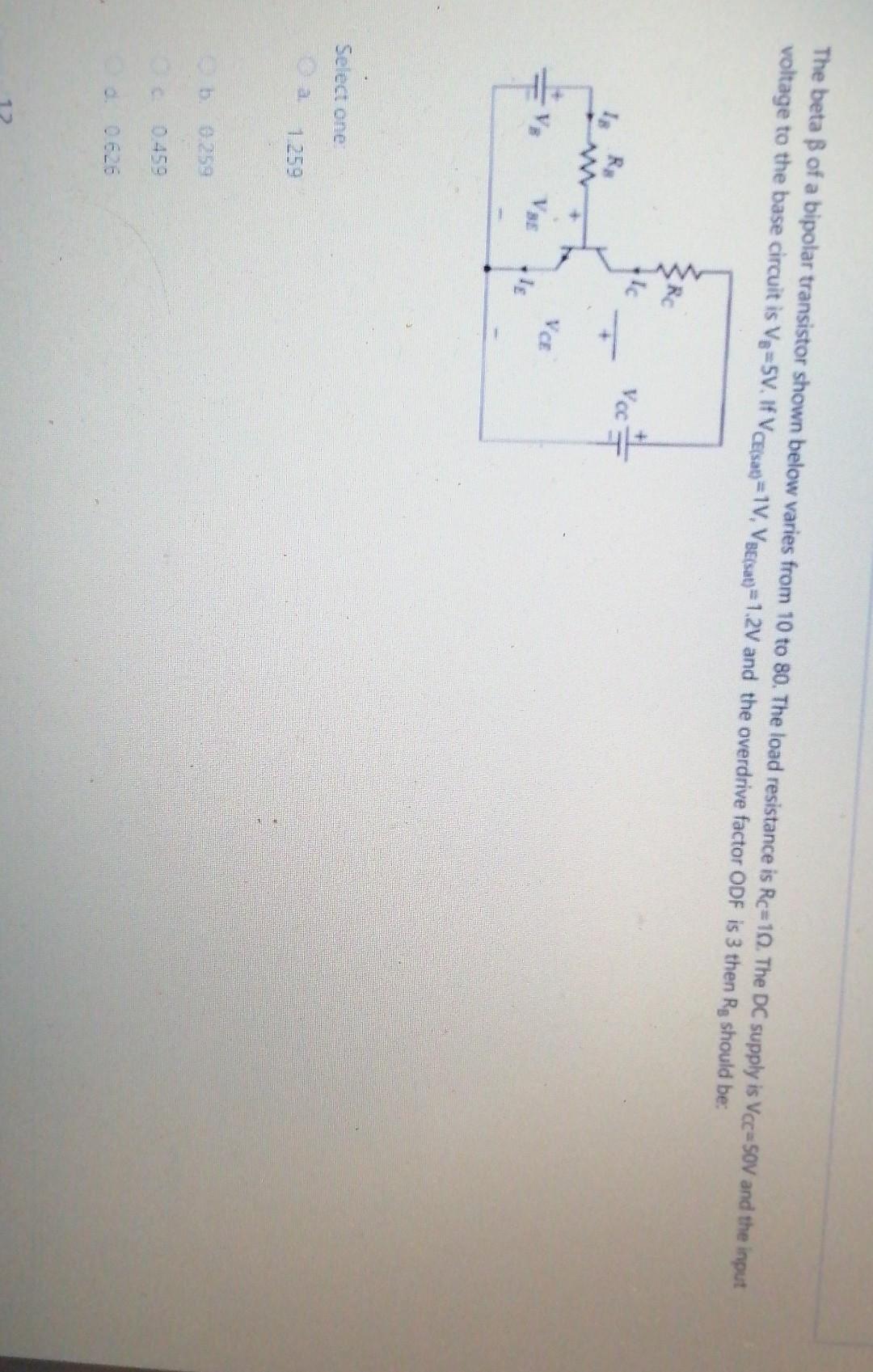

The beta ß of a bipolar transistor shown below varies from 10 to 80. The load resistance is Rc=10. The DC supply is Vcc=SOV and the input voltage to the base circuit is Vp=5V. If V CE(sav) = 1V, VE(sat) = 1.2V and the overdrive factor ODF is 3 then Rg should be: Voc VE VE Select one a 1.259 b. 0.259 0459
