The following binary-weighted-input DAC has Vref = 5V. If "Rf/R = 1.2" then what is the output voltage for a binary inpu

Post by answerhappygod »

The Following Binary Weighted Input Dac Has Vref 5v If Rf R 1 2 Then What Is The Output Voltage For A Binary Inpu 1
The Following Binary Weighted Input Dac Has Vref 5v If Rf R 1 2 Then What Is The Output Voltage For A Binary Inpu 1 (32.4 KiB) Viewed 58 times

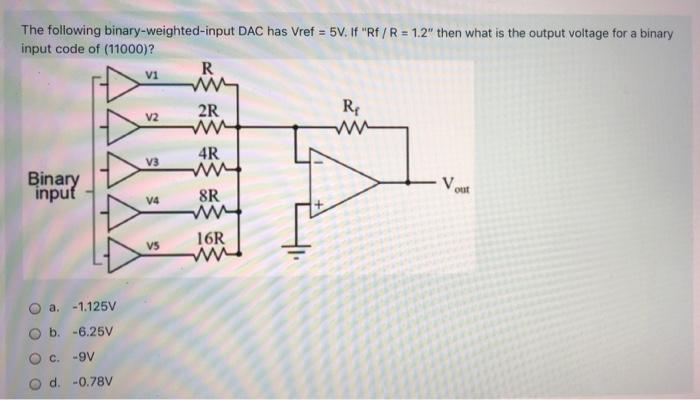

The following binary-weighted-input DAC has Vref = 5V. If "Rf/R = 1.2" then what is the output voltage for a binary input code of (11000)? R Vi V2 RE w 2R w 4R w 8R V3 Binary input V out V4 16R ww a. -1.125V b. -6.25V c. -9V d. -0.78V
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
