Design 21dBi directivity 1D linear array at 3GHz frequency by using half wavelength dipole elements placed along the x a

[answerhappygod]

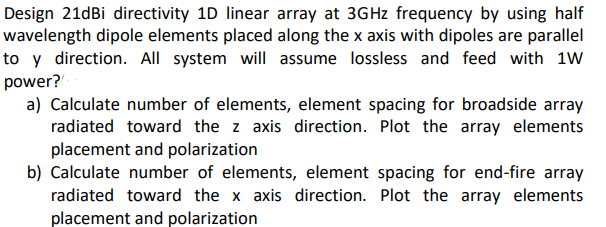

Design 21dbi Directivity 1d Linear Array At 3ghz Frequency By Using Half Wavelength Dipole Elements Placed Along The X A 1 (59.38 KiB) Viewed 59 times

Design 21dBi directivity 1D linear array at 3GHz frequency by using half wavelength dipole elements placed along the x axis with dipoles are parallel to y direction. All system will assume lossless and feed with iw power? a) Calculate number of elements, element spacing for broadside array radiated toward the z axis direction. Plot the array elements placement and polarization b) Calculate number of elements, element spacing for end-fire array radiated toward the x axis direction. Plot the array elements placement and polarization
