A single-phase full-wave converter in the figure below is supplied with a 120-V, 60-Hz source. The load is highly induct

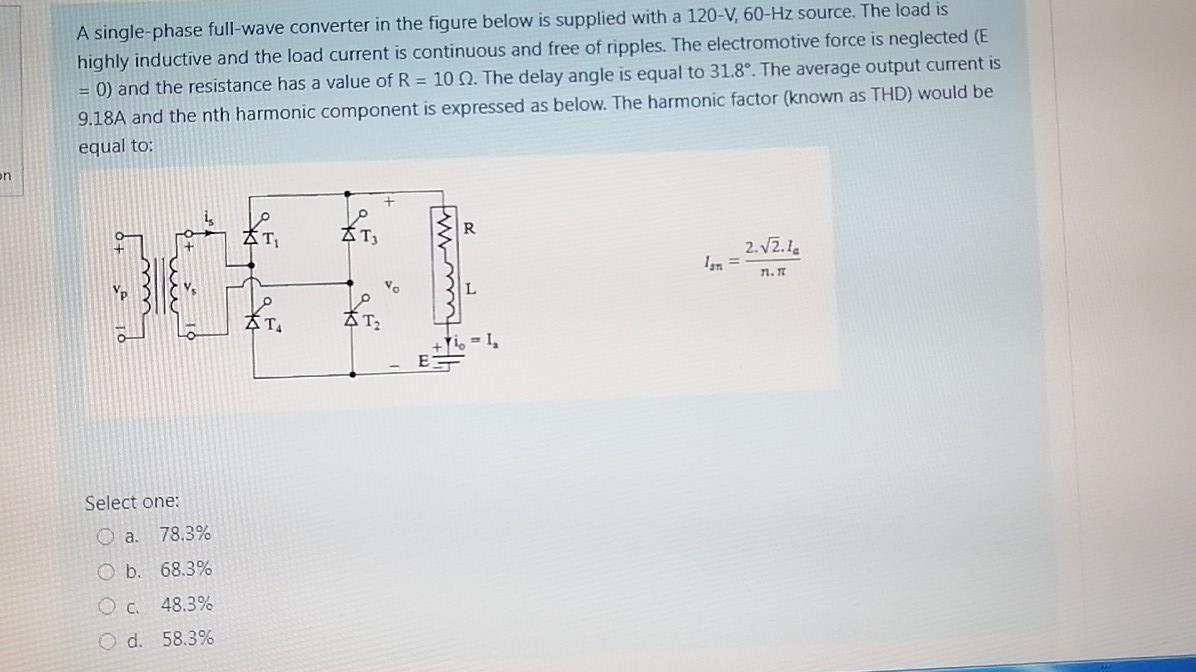

A single-phase full-wave converter in the figure below is supplied with a 120-V, 60-Hz source. The load is highly inductive and the load current is continuous and free of ripples. The electromotive force is neglected (E = 0) and the resistance has a value of R = 10 . The delay angle is equal to 31.8º. The average output current is 9.18A and the nth harmonic component is expressed as below. The harmonic factor (known as THD) would be equal to: en R AT 2.V2.12 ܕܝܐ 71.11 TA T2 Yi = 1 Select one: O a. 78.3% O b. 68.3% OC. 48.3% O d. 58.3%
