The beta ß of a bipolar transistor shown below varies from 10 to 80. The load resistance is Rc=10. The DC supply is Vcc=

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

The beta ß of a bipolar transistor shown below varies from 10 to 80. The load resistance is Rc=10. The DC supply is Vcc=

Post by answerhappygod »

The Beta Ss Of A Bipolar Transistor Shown Below Varies From 10 To 80 The Load Resistance Is Rc 10 The Dc Supply Is Vcc 1
The Beta Ss Of A Bipolar Transistor Shown Below Varies From 10 To 80 The Load Resistance Is Rc 10 The Dc Supply Is Vcc 1 (138.36 KiB) Viewed 55 times

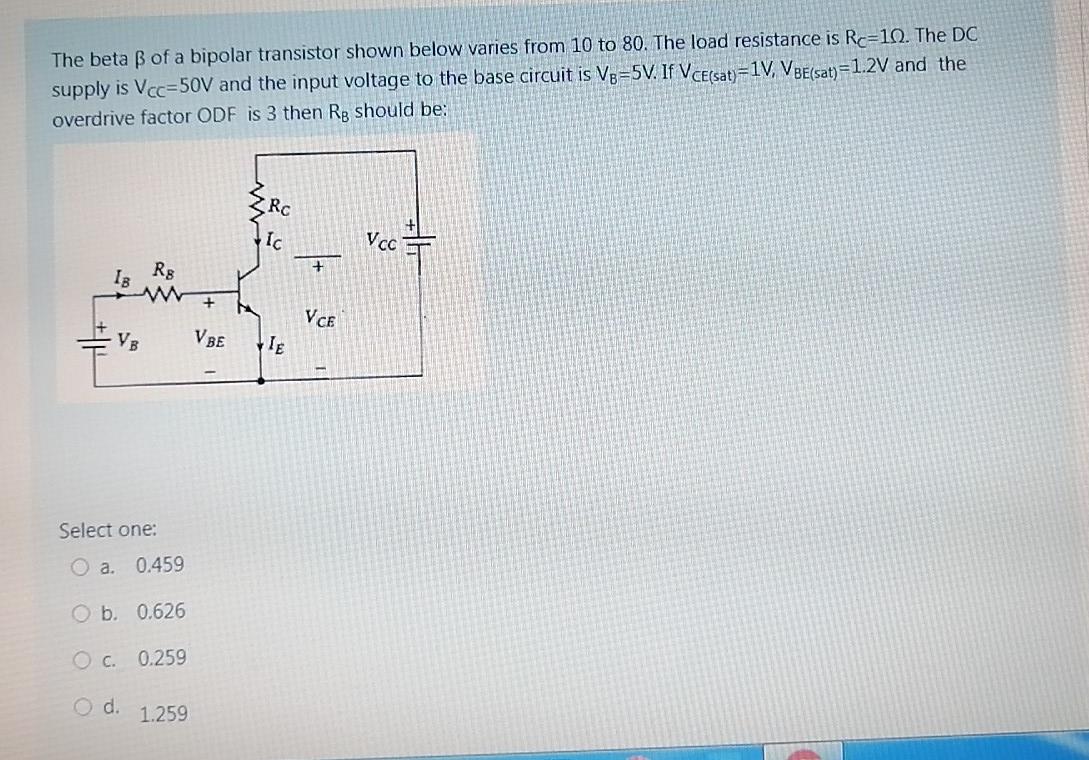

The beta ß of a bipolar transistor shown below varies from 10 to 80. The load resistance is Rc=10. The DC supply is Vcc=50V and the input voltage to the base circuit is Vg=5V. If V ceſsat=1V, VBE(sat)=1.2V and the overdrive factor ODF is 3 then Rg should be: 3Rc ic VCC 4 RE + 18 + VCE VB VBE IE Select one: O a. 0.459 O b. 0.626 OC. 0.259 O d. 1.259
