A single phase bridge rectifier supplied from a 120V - 50 Hz sinusoidal source is connected to an inductive load. The ge

Post by answerhappygod »

A Single Phase Bridge Rectifier Supplied From A 120v 50 Hz Sinusoidal Source Is Connected To An Inductive Load The Ge 1
A Single Phase Bridge Rectifier Supplied From A 120v 50 Hz Sinusoidal Source Is Connected To An Inductive Load The Ge 1 (94.05 KiB) Viewed 99 times

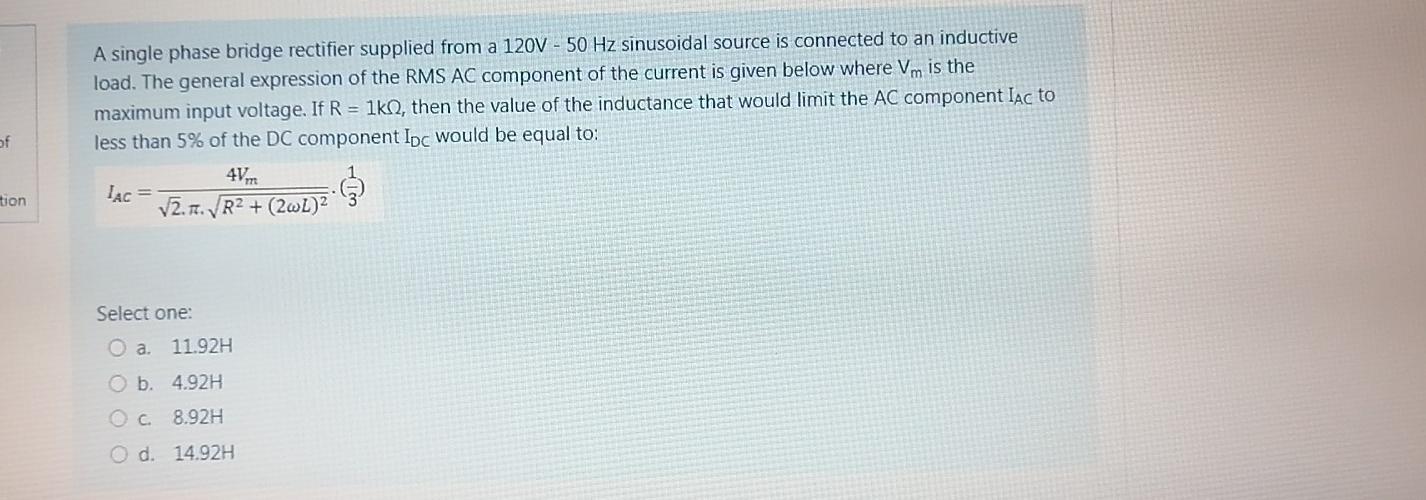

A single phase bridge rectifier supplied from a 120V - 50 Hz sinusoidal source is connected to an inductive load. The general expression of the RMS AC component of the current is given below where Vm is the maximum input voltage. If R = 1k0, then the value of the inductance that would limit the AC component Iac to less than 5% of the DC component Ipc would be equal to: 41m TAC = . V2.7. VR2 + (2WL)2 of $ tion Select one: Оа. 11.92H b. 4.92H OC 8.92H O d. 14.92H
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
