A three phase full wave rectifier is shown below along with the peak input phase voltage Vm=169.7V. The load is purely r

Post by answerhappygod »

A Three Phase Full Wave Rectifier Is Shown Below Along With The Peak Input Phase Voltage Vm 169 7v The Load Is Purely R 1
A Three Phase Full Wave Rectifier Is Shown Below Along With The Peak Input Phase Voltage Vm 169 7v The Load Is Purely R 1 (186.44 KiB) Viewed 37 times

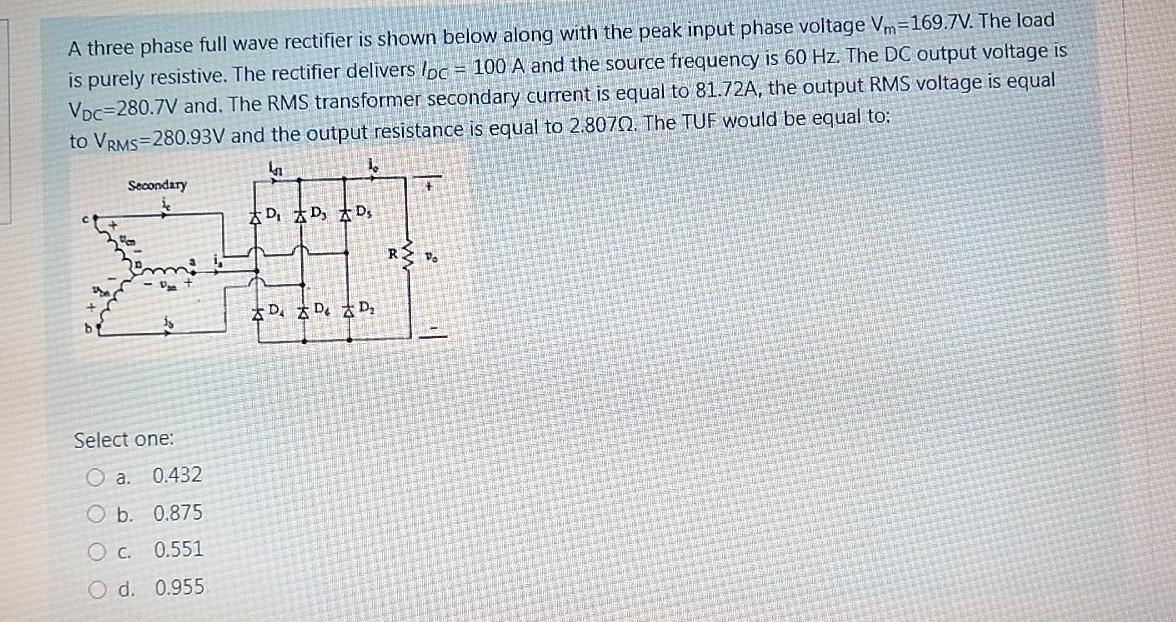

A three phase full wave rectifier is shown below along with the peak input phase voltage Vm=169.7V. The load is purely resistive. The rectifier delivers loc= 100 A and the source frequency is 60 Hz. The DC output voltage is Voc=280.7V and. The RMS transformer secondary current is equal to 81.72A, the output RMS voltage is equal to VRMs=280.93V and the output resistance is equal to 2.80722. The TUF would be equal to: 12 Secondary 1. *D*D, ADS RS D. Ve *DADE AD Select one: O a. 0.432 O b. 0.875 Oc. 0.551 O d. 0.955
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
