A transistor is used as a switch and the waveforms are shown below. The parameters are given as follows: Vcc = 200 V, VB

[answerhappygod]

A Transistor Is Used As A Switch And The Waveforms Are Shown Below The Parameters Are Given As Follows Vcc 200 V Vb 1 (197.58 KiB) Viewed 73 times

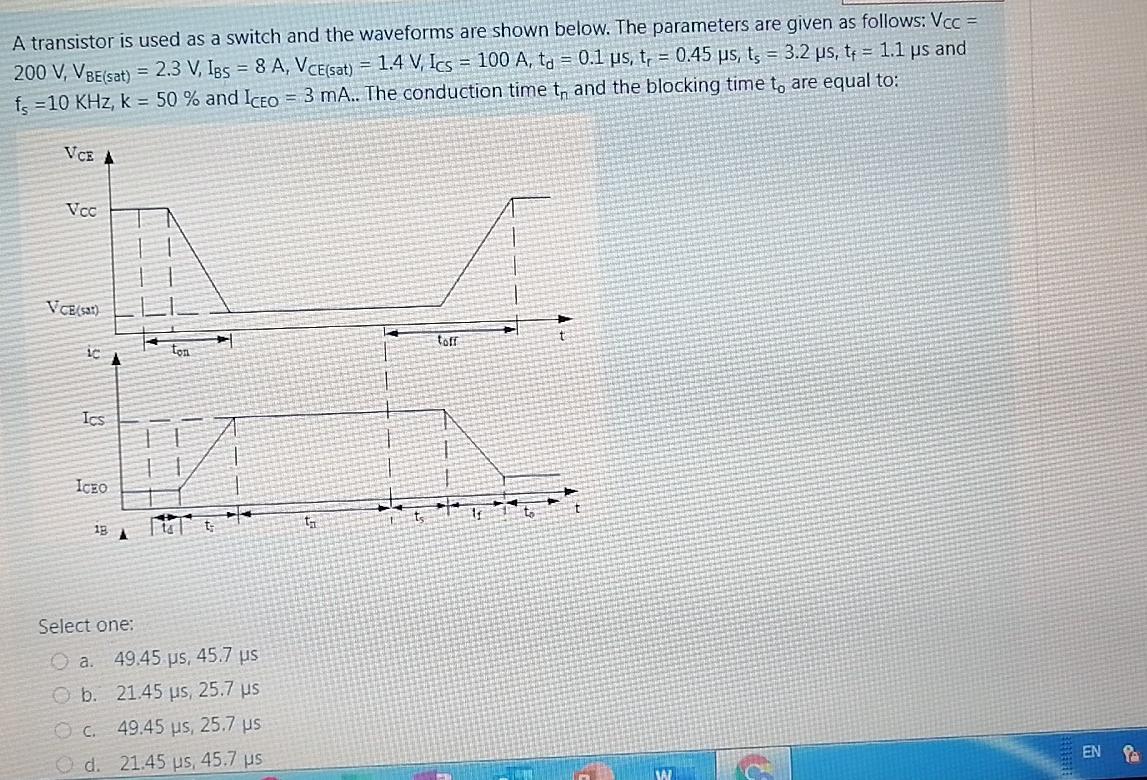

A transistor is used as a switch and the waveforms are shown below. The parameters are given as follows: Vcc = 200 V, VBE(sat) = 2.3 V, Igs = 8 A, VCE(sat) = 1.4 V, Ics = 100 A, ta = 0.1 us, t, = 0.45 us, ts = 3.2 ps, ty = 1.1 us and fs = 10 KHz, k = 50 % and ICEO 3 mA.. The conduction time t, and the blocking time t, are equal to: VCE Vcc SA VCE (1) tor 1C ton Ics ICEO ts 11 ti th 13 Select one: O a. 49.45 ps, 45.7 us b. 21.45 us, 25.7 us OC. 49.45 us, 25.7 us Od 21.45 us, 45.7 us EN SA WA
