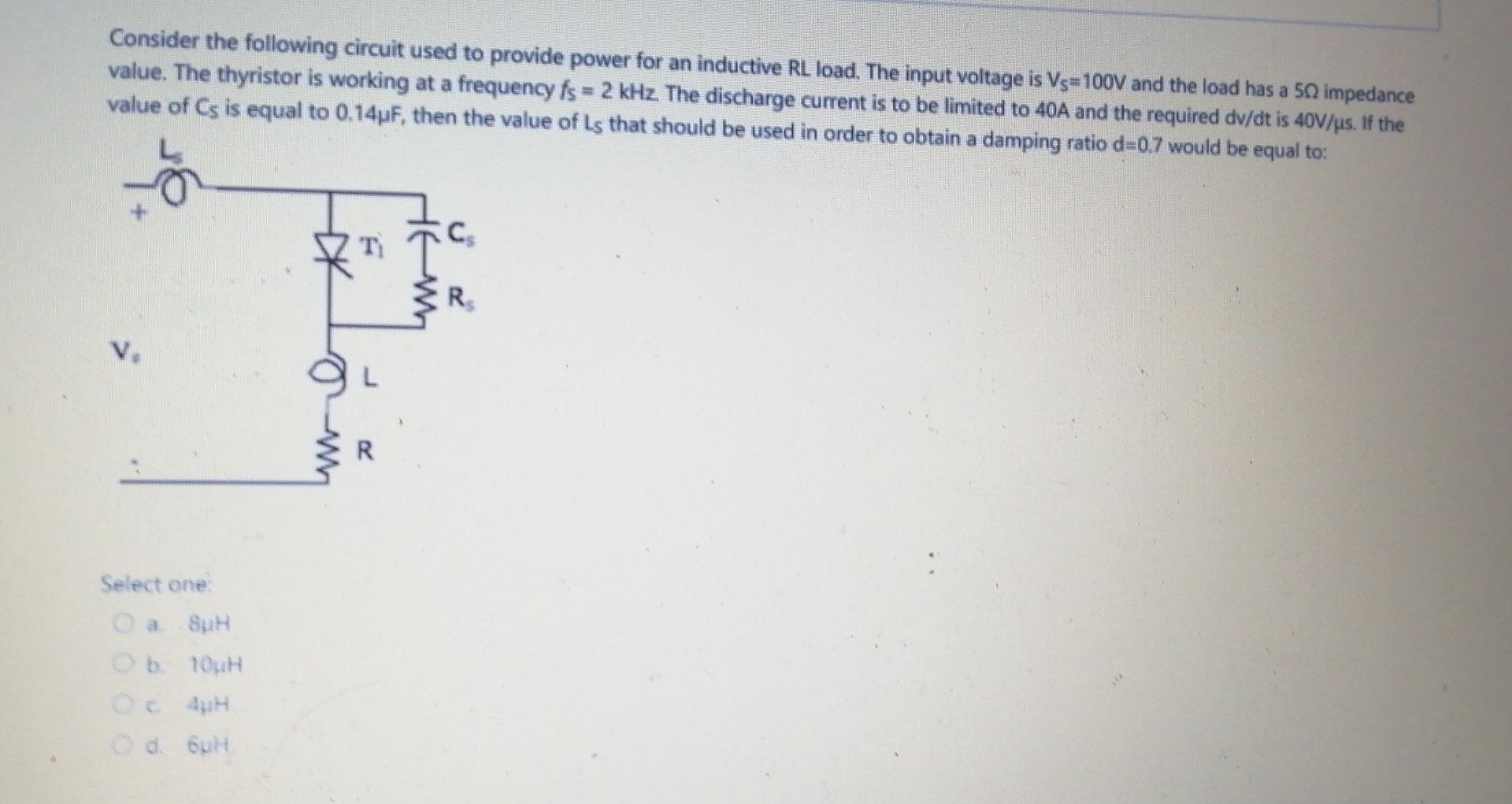

Consider the following circuit used to provide power for an inductive RL load. The input voltage is Vs=100V and the load has a 50 impedance value. The thyristor is working at a frequency fs = 2 kHz. The discharge current is to be limited to 40A and the required dv/dt is 40V/us. If the value of Cs is equal to 0.14uF, then the value of Is that should be used in order to obtain a damping ratio d=0.7 would be equal to: С. T * RS . V e Select one a Sul bout dult
