A single-phase full-wave converter in the figure below is supplied with a 120-V, 60-Hz source. The load is highly induct

Post by answerhappygod »

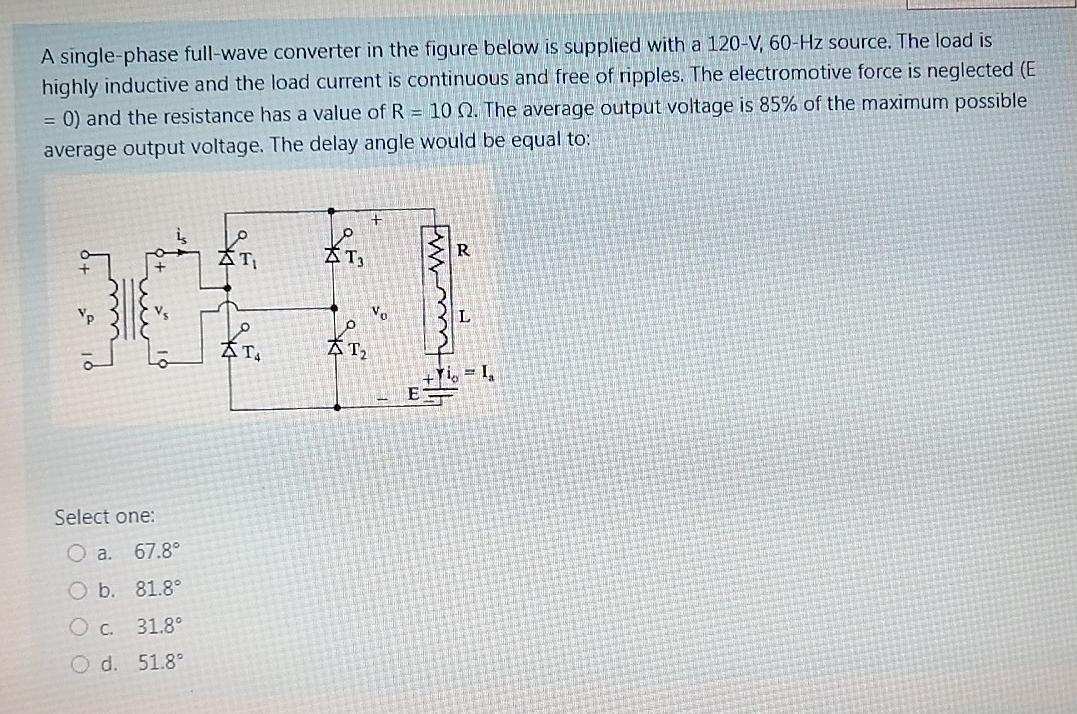

A Single Phase Full Wave Converter In The Figure Below Is Supplied With A 120 V 60 Hz Source The Load Is Highly Induct 1
A Single Phase Full Wave Converter In The Figure Below Is Supplied With A 120 V 60 Hz Source The Load Is Highly Induct 1 (165.21 KiB) Viewed 50 times
A single-phase full-wave converter in the figure below is supplied with a 120-V, 60-Hz source. The load is highly inductive and the load current is continuous and free of ripples. The electromotive force is neglected (E = 0) and the resistance has a value of R = 10 . The average output voltage is 85% of the maximum possible average output voltage. The delay angle would be equal to: o ki, R Vp vo L T. AT = 1, Select one: O a. 67.89 O b. 81.8° Oc. 31.8° O d. 51.8°
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
