Consider an LTI system whose response to the signal 11(t) in Figure 1(a) is the signal yı(t) illustrated in Figure 1(b).

[answerhappygod]

Consider An Lti System Whose Response To The Signal 11 T In Figure 1 A Is The Signal Yi T Illustrated In Figure 1 B 1 (76.38 KiB) Viewed 58 times

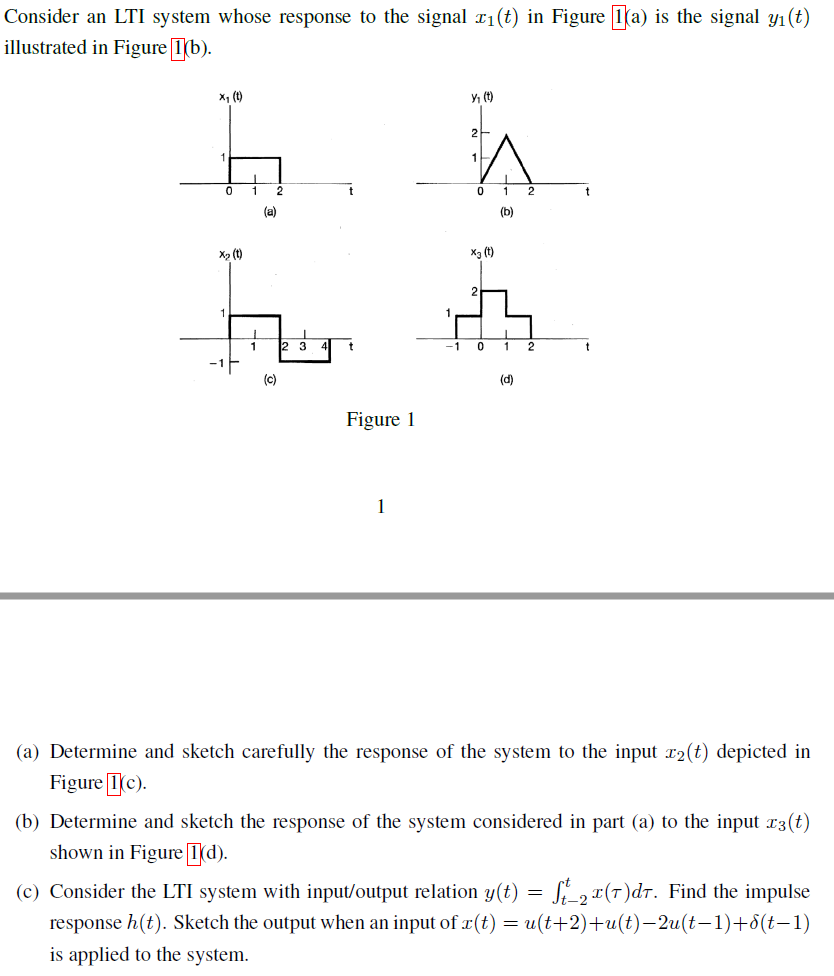

Consider an LTI system whose response to the signal 11(t) in Figure 1(a) is the signal yı(t) illustrated in Figure 1(b). X(0 y (1) 2 m 1 0 1 t 0 1 2 t (a) (b) X2 (1) xa (t) 2 0 1 2 (c) (d) Figure 1 1 (a) Determine and sketch carefully the response of the system to the input [2(t) depicted in Figure 1c). (b) Determine and sketch the response of the system considered in part (a) to the input 13(t) shown in Figure 1 (d). (c) Consider the LTI system with input/output relation y(t) = S1_28(T)dt. Find the impulse response h(t). Sketch the output when an input of r(t) = u(t+2)+u(t)-2u(t-1)+(t-1) is applied to the system.
