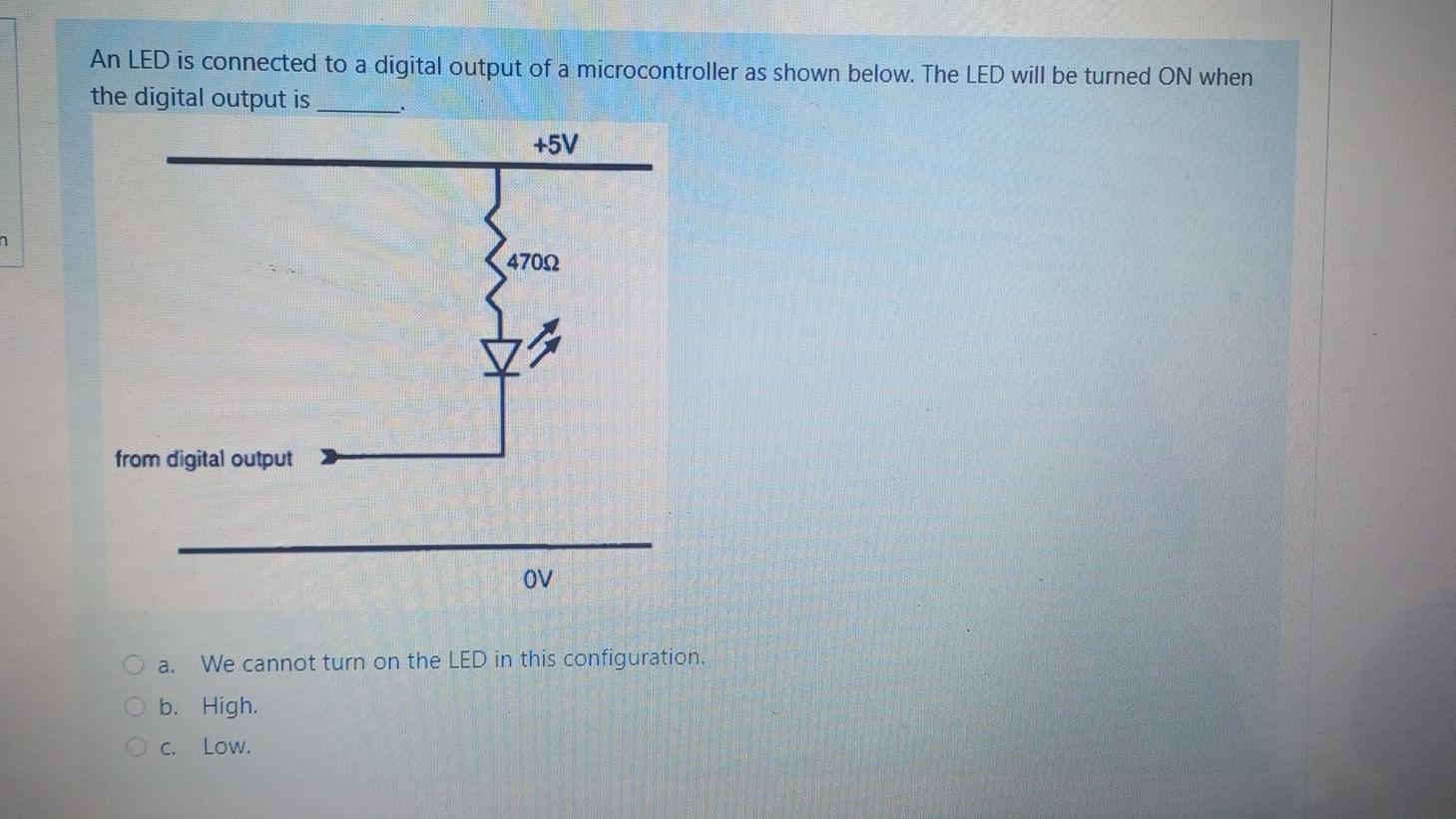

An LED is connected to a digital output of a microcontroller as shown below. The LED will be turned ON when the digital output is +5V n 47092 from digital output OV a. We cannot turn on the LED in this configuration. b. High Low. C.

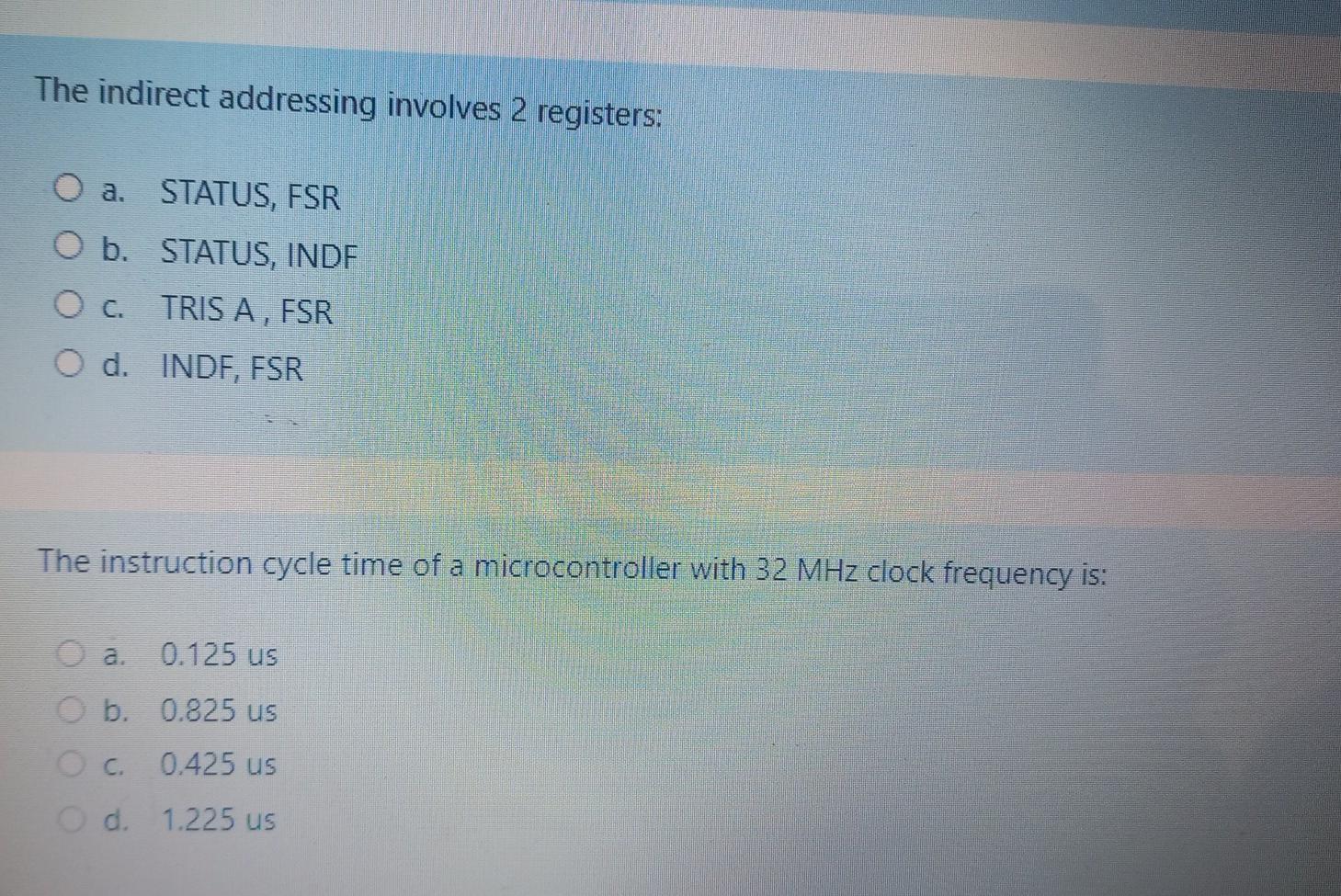

The indirect addressing involves 2 registers: O a. STATUS, FSR O b. STATUS, INDF O c. TRIS A, FSR O d. INDF, FSR The instruction cycle time of a microcontroller with 32 MHz clock frequency is: oa. 0.125 us O b. 0.825 us OC. 0.425 us O d. 1.225 us
