Need help please, ASAP
Electromagnetic Fields Theory

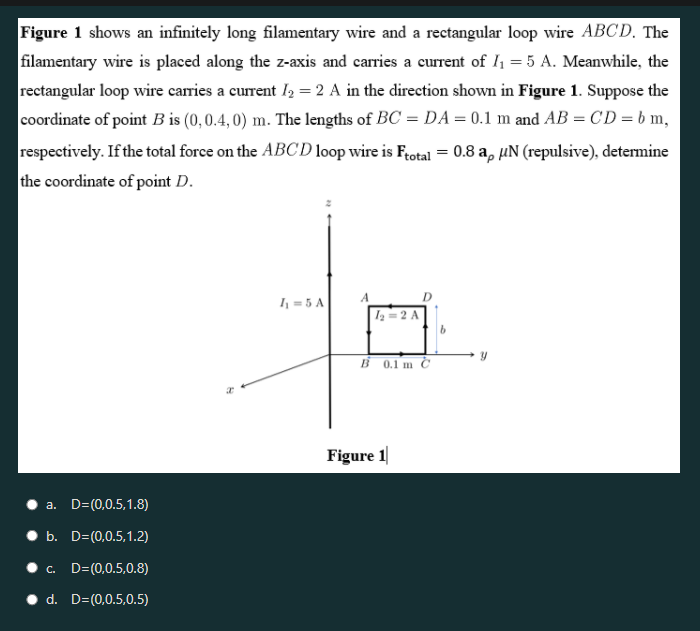

Figure 1 shows an infinitely long filamentary wire and a rectangular loop wire ABCD. The filamentary wire is placed along the z-axis and carries a current of 11 = 5 A. Meanwhile, the rectangular loop wire carries a current 19 = 2 A in the direction shown in Figure 1. Suppose the coordinate of point B is (0,0.4,0) m. The lengths of BC = DA = 0,1 m and AB = CD= b m, respectively. If the total force on the ABCD loop wire is Ftotal = 0.8 a, uN (repulsive), determine the coordinate of point D. 1.-5A D 1, 2 A b y B 0.1 mc Figure 1 a. D=(0,0.5,1.8) b. D=(0,0.5,1.2) C. D=(0,0.5,0.8) d. D=(0,0.5,0.5)
