Q1. [18 marks]: For a given control system. K (S-3)(S+8)(S+10) Y(S) X(S) 1- Sketch the root locus. 2- Find the range of

[answerhappygod]

Q1 18 Marks For A Given Control System K S 3 S 8 S 10 Y S X S 1 Sketch The Root Locus 2 Find The Range Of 1 (105.44 KiB) Viewed 54 times

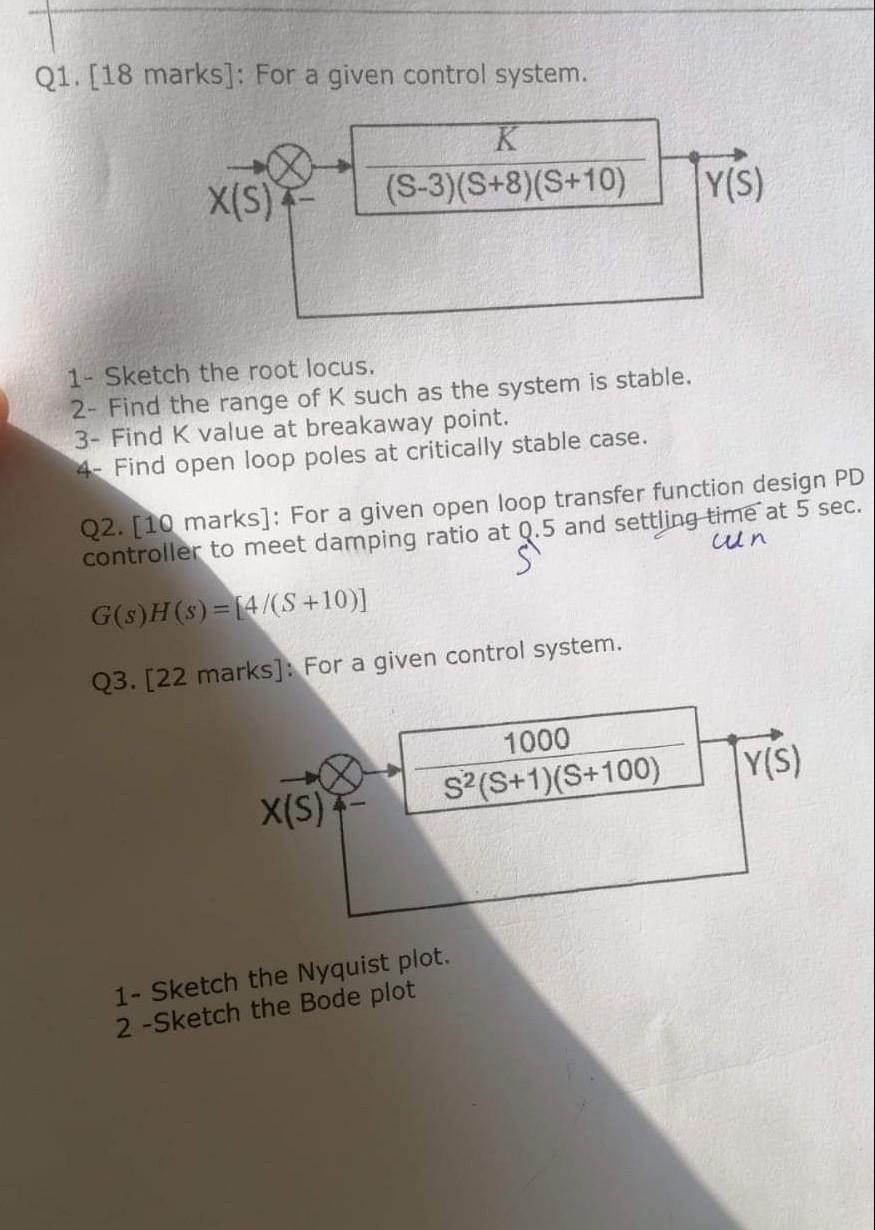

Q1. [18 marks]: For a given control system. K (S-3)(S+8)(S+10) Y(S) X(S) 1- Sketch the root locus. 2- Find the range of K such as the system is stable. 3- Find K value at breakaway point. 4- Find open loop poles at critically stable case. Q2. [10 marks]: For a given open loop transfer function design PD controller to meet damping ratio at 0.5 and settling time at 5 sec. cuin G(s)H(s) = [4/(S +10)] Q3. [22 marks]: For a given control system. 1000 S2(S+1)(S+100) Y(S) X(S) 1- Sketch the Nyquist plot. 2 -Sketch the Bode plot
