A single phase inverter of Fig. 23, is supplied from a 200 V d.c. source, with resistive/inductive load of 89 and 0.02 H

Post by answerhappygod »

A Single Phase Inverter Of Fig 23 Is Supplied From A 200 V D C Source With Resistive Inductive Load Of 89 And 0 02 H 1
A Single Phase Inverter Of Fig 23 Is Supplied From A 200 V D C Source With Resistive Inductive Load Of 89 And 0 02 H 1 (24.36 KiB) Viewed 122 times

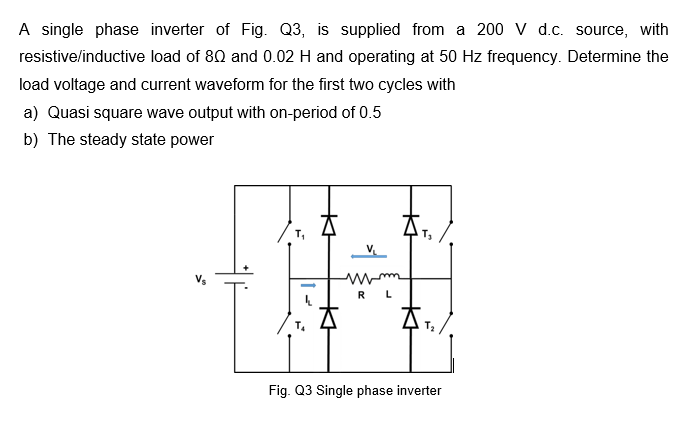

A single phase inverter of Fig. 23, is supplied from a 200 V d.c. source, with resistive/inductive load of 89 and 0.02 H and operating at 50 Hz frequency. Determine the load voltage and current waveform for the first two cycles with a) Quasi square wave output with on-period of 0.5 b) The steady state power 1, 4 w R L T! Fig. Q3 Single phase inverter
