= The circuit shown in the figure generates a square wave with time period defined as T = 2*R*C*In((1+B)/(1-B)). For R =

Post by answerhappygod »

The Circuit Shown In The Figure Generates A Square Wave With Time Period Defined As T 2 R C In 1 B 1 B For R 1
The Circuit Shown In The Figure Generates A Square Wave With Time Period Defined As T 2 R C In 1 B 1 B For R 1 (26.25 KiB) Viewed 73 times

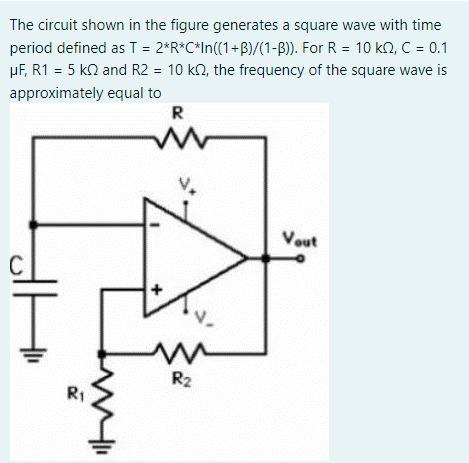

= The circuit shown in the figure generates a square wave with time period defined as T = 2*R*C*In((1+B)/(1-B)). For R = 10 k2, C = 0.1 UF, R1 = 5 kN and R2 = 10 k12, the frequency of the square wave is approximately equal to R Vout w R2 RI
