مشخص کنید. The following code section describes an MUX. On paper, set the inputs inl and in2 to 'O' and change the S inp

[answerhappygod]

1 (24.64 KiB) Viewed 33 times

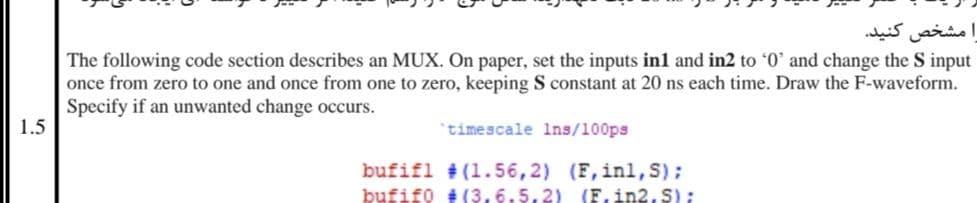

مشخص کنید. The following code section describes an MUX. On paper, set the inputs inl and in2 to 'O' and change the S input once from zero to one and once from one to zero, keeping S constant at 20 ns each time. Draw the F-waveform. Specify if an unwanted change occurs. timescale Ins/100ps 1.5 bufifl +(1.56,2) (F, inl,S); bufifo #13.6.5.2) (F. in2.s);
