b) 4x10-4 A linear actuator of the type shown in Figure Q26 has a coil inductance that varies with the air gap dimension

Post by answerhappygod »

B 4x10 4 A Linear Actuator Of The Type Shown In Figure Q26 Has A Coil Inductance That Varies With The Air Gap Dimension 1
B 4x10 4 A Linear Actuator Of The Type Shown In Figure Q26 Has A Coil Inductance That Varies With The Air Gap Dimension 1 (290.55 KiB) Viewed 54 times

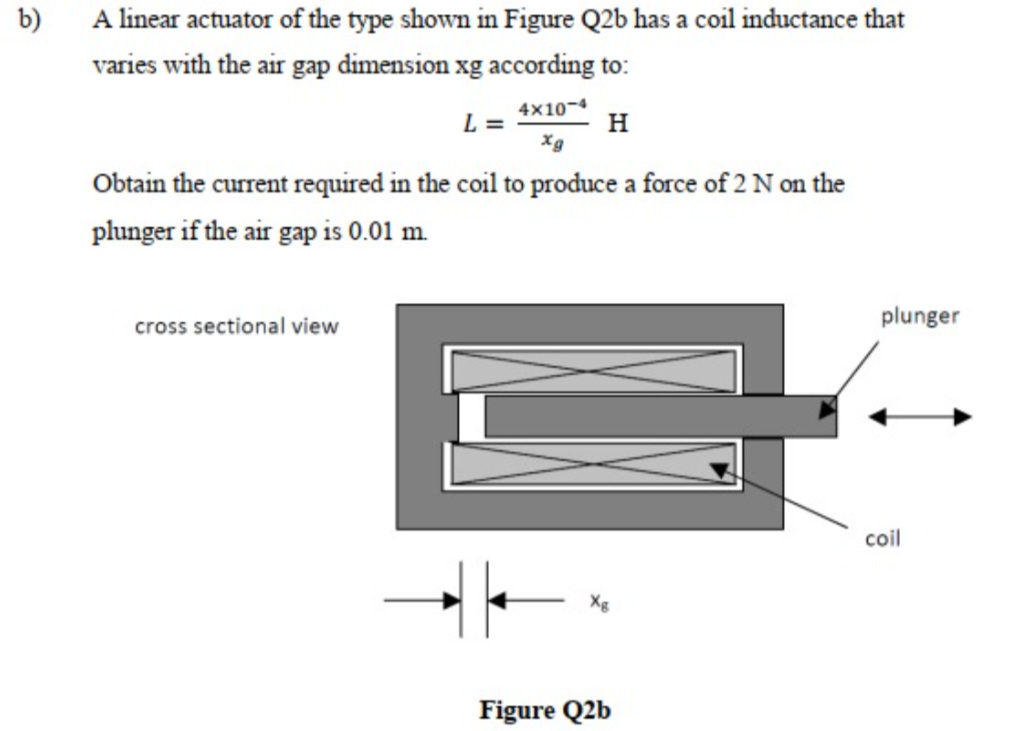

b) 4x10-4 A linear actuator of the type shown in Figure Q26 has a coil inductance that varies with the air gap dimension xg according to: н xg Obtain the current required in the coil to produce a force of 2 N on the plunger if the air gap is 0.01 m. L= cross sectional view plunger coil 11 Figure Q2b
