b) 6 In the circuit of Figure Q3b, find the voltage across the current source given that the reverse saturation current

Post by answerhappygod »

B 6 In The Circuit Of Figure Q3b Find The Voltage Across The Current Source Given That The Reverse Saturation Current 1
B 6 In The Circuit Of Figure Q3b Find The Voltage Across The Current Source Given That The Reverse Saturation Current 1 (26.66 KiB) Viewed 33 times
solve in 20 mins i will give thumb up

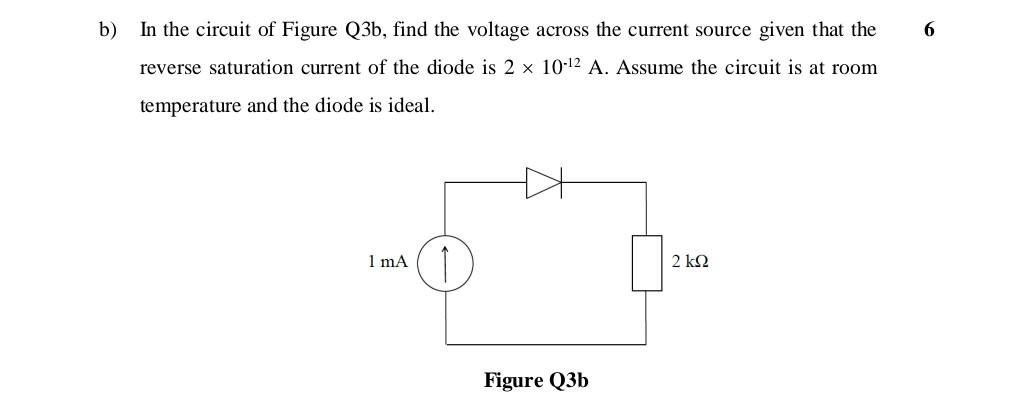

b) 6 In the circuit of Figure Q3b, find the voltage across the current source given that the reverse saturation current of the diode is 2 x 10-12 A. Assume the circuit is at room temperature and the diode is ideal. 1 mA î 2 k22 Figure Q3b
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
