A 230 V, 20 hp, 60Hz, six-pole, induction motor is driving a constant torque load at rated frequency, rated voltage and

Post by answerhappygod »

A 230 V 20 Hp 60hz Six Pole Induction Motor Is Driving A Constant Torque Load At Rated Frequency Rated Voltage And 1
A 230 V 20 Hp 60hz Six Pole Induction Motor Is Driving A Constant Torque Load At Rated Frequency Rated Voltage And 1 (36.75 KiB) Viewed 35 times

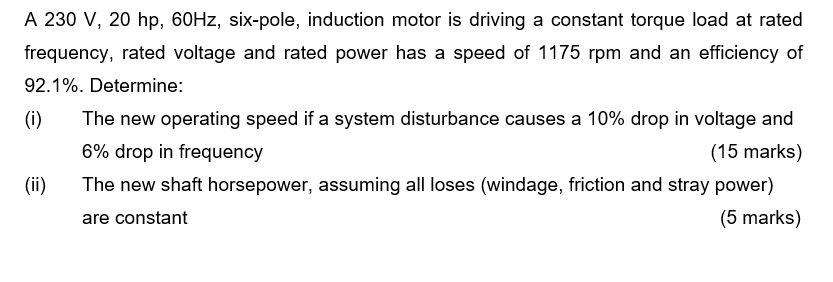

A 230 V, 20 hp, 60Hz, six-pole, induction motor is driving a constant torque load at rated frequency, rated voltage and rated power has a speed of 1175 rpm and an efficiency of 92.1%. Determine: (i) The new operating speed if a system disturbance causes a 10% drop in voltage and 6% drop in frequency (15 marks) (ii) The new shaft horsepower, assuming all loses (windage, friction and stray power) are constant (5 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
