A9 Referring to figure A8, what is the Verilog-HDL primitive element for components labelled T1' and 'T2'? A10 Write down the sequence of states in decimal produced by the circuit of figure A10, assuming it starts in state <Q2, Q1, QO> = <0, 0,1> and Q2 is the MSB. Ibon Q1 02 D D D Q CLK CLK CLK Figure A10

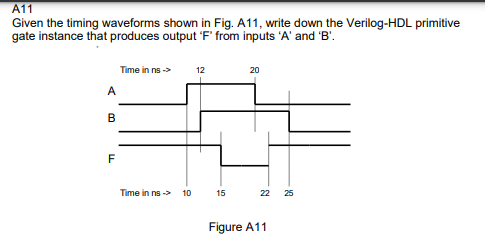

A11 Given the timing waveforms shown in Fig. A11, write down the Verilog-HDL primitive gate instance that produces output 'F' from inputs 'A' and 'B'. 12 20 Time in ns-> А B F TI Time in ns-> 10 15 22 25 Figure A11
