3. a) Explain using appropriate equations why magnetic field lines are confined to the core of a magnetic circuit. Your

[answerhappygod]

3 A Explain Using Appropriate Equations Why Magnetic Field Lines Are Confined To The Core Of A Magnetic Circuit Your 1 (19.5 KiB) Viewed 42 times

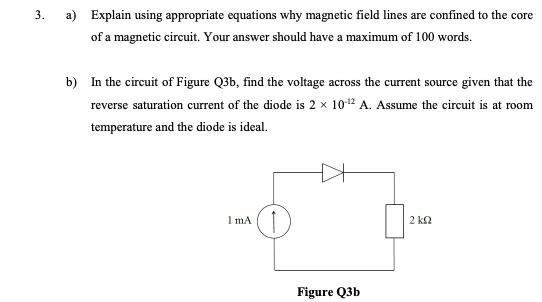

3. a) Explain using appropriate equations why magnetic field lines are confined to the core of a magnetic circuit. Your answer should have a maximum of 100 words. b) In the circuit of Figure Q3b, find the voltage across the current source given that the reverse saturation current of the diode is 2 x 10-2 A. Assume the circuit is at room temperature and the diode is ideal. X ImA 2 ΚΩ Figure Q3b
