a) A dense bundle of insulated cables is shown in Figure Q2a. Each cable carries a DC current as shown where I is the cu

[answerhappygod]

A A Dense Bundle Of Insulated Cables Is Shown In Figure Q2a Each Cable Carries A Dc Current As Shown Where I Is The Cu 1 (24.34 KiB) Viewed 48 times

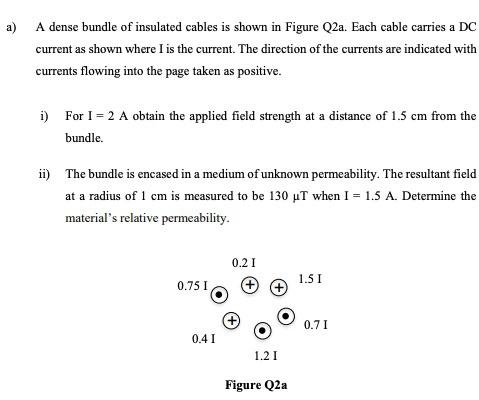

a) A dense bundle of insulated cables is shown in Figure Q2a. Each cable carries a DC current as shown where I is the current. The direction of the currents are indicated with currents flowing into the page taken as positive. i) For I = 2 A obtain the applied field strength at a distance of 1.5 cm from the bundle. ii) The bundle is encased in a medium of unknown permeability. The resultant field at a radius of 1 cm is measured to be 130 ut when I = 1.5 A. Determine the material's relative permeability. 0.21 0.75 1 + 1.51 (+) 0.71 0.41 1.21 Figure Q2a
